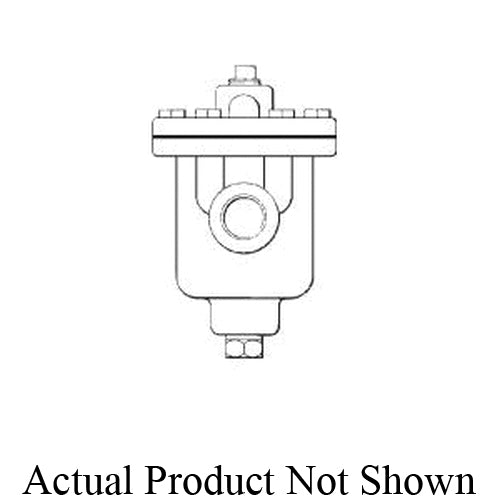

Spirax Sarco 62761 B2 Inverted Bucket Steam Trap

Product Description

The Spirax Sarco Inverted Bucket Steam Trap, model number 62761, features a durable cast iron body. It operates using an inverted bucket mechanism that efficiently separates steam from condensate. This steam trap discharges condensate while maintaining steam temperature, achieving a cyclic discharge action.

• Pressure Rating: 30 psi
• Temperature Rating: Up to 450 degrees Fahrenheit
• Nominal Size: Three-fourths inch FNPT

Product Highlights

This steam trap is designed for reliable performance in demanding applications, effectively handling dirt and providing quick venting of air and non-condensable gases.

Product Information

Standard Information

• Brand: Spirax Sarco
• Part Number: 62761

Technical Specifications

• Material: Cast Iron
• Series: B Series
• Length: 6.6 inches
• Nominal Size: 3/4 inch
• Pressure Rating: 30 psi
• Temperature Rating: 450 degrees Fahrenheit
• Connection End Style: FNPT
• Domestic/Import: Domestic
