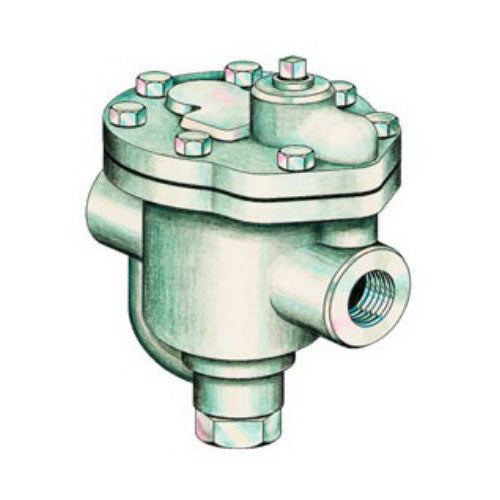

Spirax Sarco 62755 B2 Inverted Bucket Steam Trap

Product Description

The Spirax Sarco B2 Inverted Bucket Steam Trap, MPN 62755, effectively removes condensate from steam systems. It features an inverted bucket mechanism that utilizes the density difference between steam and condensate for efficient operation. The steam trap maintains a maximum pressure of 15 psi and is constructed from durable cast iron for reliable performance.

• Inverted bucket design for efficient steam condensate removal
• Robust cast iron body for durability
• 3/4 inch NPT connection for easy installation

Product Highlights

This steam trap is designed for reliable performance in industrial applications where steam efficiency is critical.

Product Information

Standard Information

• Brand: Spirax-Sarco
• Model: B2-15

Technical Specifications

• Length: 6.6 inches
• Material: Cast Iron
• Pressure Rating: 15 psi
• Nominal Size: 3/4 inch
• Series: B Series
• Temperature Rating: 450 degrees F
• Steam Trap Type: Inverted Bucket
• Connection End Style: FNPT
