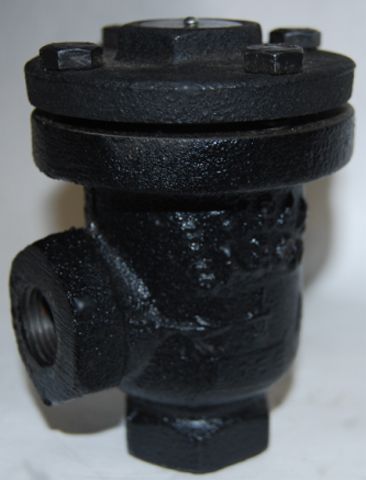

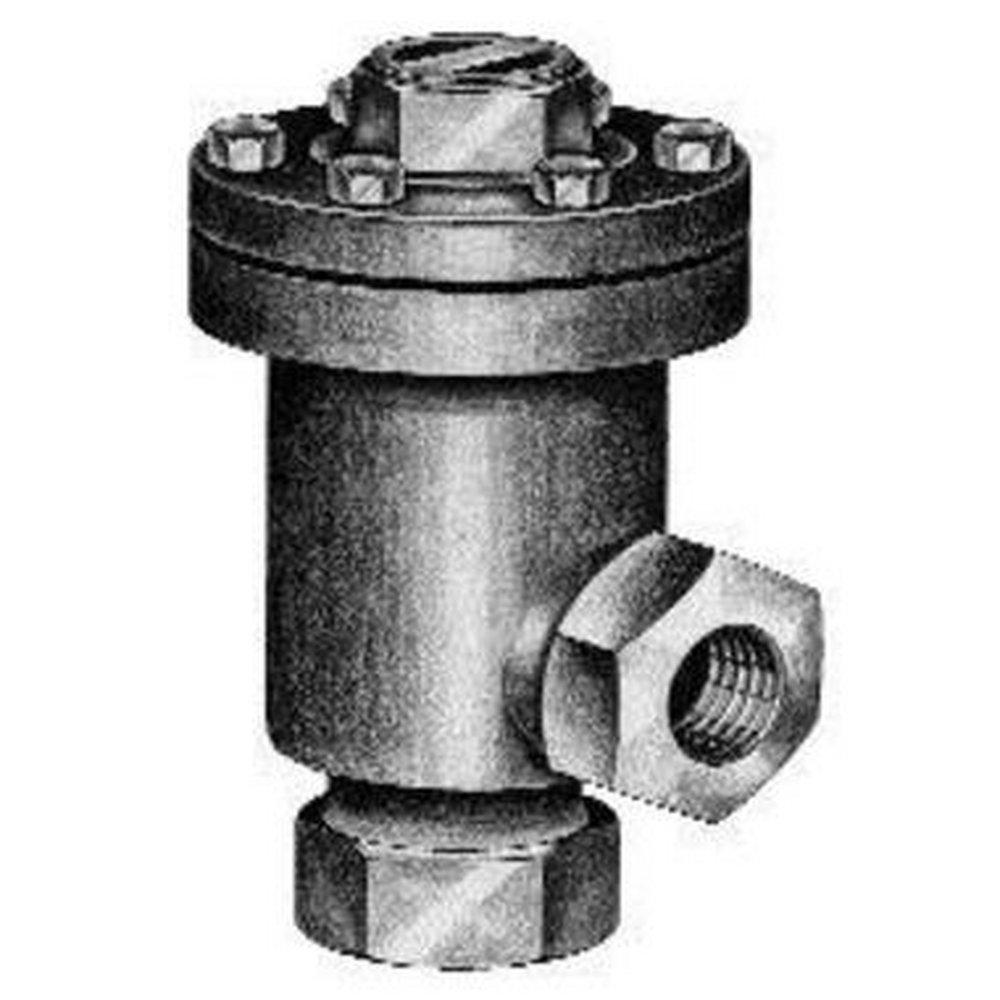

Spirax Sarco 61706 T250 3/4 in. 450F 250 psig Steam Trap

Product Description

The Spirax Sarco T250 steam trap, part number 61706, is designed for efficient condensate drainage in steam systems. It features a three-fourth inch trap connection and a maximum pressure capacity of two hundred fifty psi. This thermostatic trap is suitable for low and medium pressure heating applications.

• Thermostatic industrial design.
• Cast iron body material.
• Capacity of eight thousand five hundred pounds per hour.

Product Highlights

This steam trap operates by expanding with steam presence, thereby closing the trap. When cooler air or condensate is detected, it contracts to open the trap, allowing efficient drainage.

Product Information

Standard Information

• Brand: Spirax Sarco
• Model: T-250

Technical Specifications

• MPN: 61706
• Steam Trap Type: Thermostatic Industrial
• Body Material: Cast Iron
• Steam Trap Connection Size: 3/4 inch
• Steam Trap Mounting: Straight
• Max Pressure: 250 psi
• Weight: 4.20 pounds
