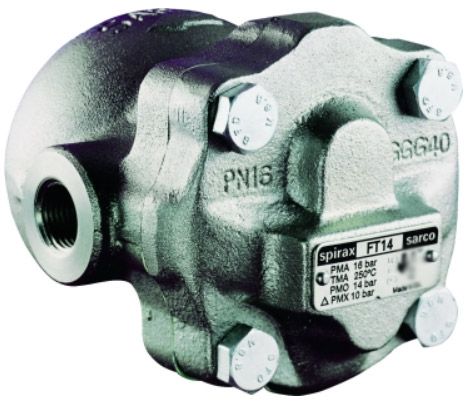

Spirax-Sarco 6150166 FT14-10 - 3/4 Cast Iron Float & Thermostatic Trap

Product Description

The Spirax-Sarco float and thermostatic high pressure steam trap, model FT14-10, features a three fourths inch trap connection in an in-line horizontal configuration. This design allows steam to enter from one side of the trap, while condensate discharges from the other side. FT14 Series traps enable continuous drainage and are suitable for low, medium, and high pressure steam mains. Standard internal components are made from stainless steel, enhancing durability. The cast iron body allows for a maximum operating pressure of 145 psi. This model is designed for heat exchange equipment and can efficiently vent air and non-condensable gases. It works well under modulating pressures and varying loads, making it effective for applications that require air venting at low pressures and operation against back pressure.

• High pressure steam trap with a maximum pressure of 145 psi.
• Features continuous drainage suitable for varying pressure systems.
• Designed for effective air venting and condensate drainage.

Product Highlights

Efficient and durable for high pressure steam applications, enabling reliable venting of air and gases.

Product Information

Standard Information

• Brand: Spirax-Sarco
• Model: FT14-10

Technical Specifications

• Steam Trap Type: Float & Thermostatic
• Body Material: Cast Iron
• Steam Trap Connection Size: 3/4 inches
• Steam Trap Mounting: In-Line Horizontal
• Max Pressure: 145 psi
• Weight: 6.40 lbs
