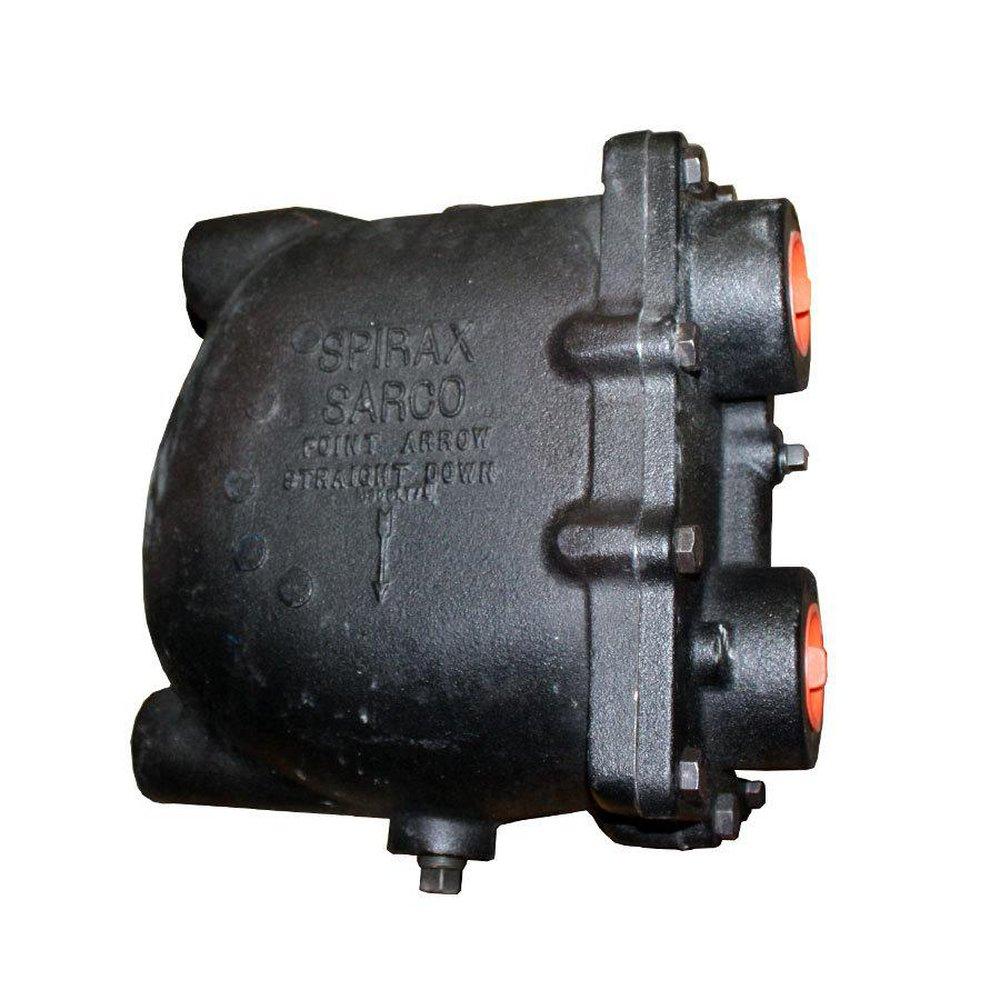

Spirax Sarco 61070 FTB Super Capacity Series 2-1/2 in. 450F 175 psig Steam Trap

Product Description

The Spirax Sarco FTB-175 model steam trap, MPN 61070, is a float and thermostatic (F&T) trap designed for efficient steam management. This trap features a 2-1/2 inch connection in a same side parallel configuration. Its robust cast iron construction allows for operation at a maximum pressure of one hundred seventy-five psi. The FTB-175 is engineered to handle high capacity drainage, making it suitable for a variety of steam applications.

• Maximum operating pressure of one hundred seventy-five psi.
• Suitable for steam applications requiring efficient condensate drainage.
• Designed for continuous drainage with stainless steel internal components.

Product Highlights

The FTB-175 is ideal for low, medium, and high-pressure steam mains. It vents air and non-condensable gases effectively, ensuring optimal performance in heating equipment and systems.

Product Information

Standard Information

• Brand: Spirax Sarco
• MPN: 61070

Technical Specifications

• Model: FTB-175
• Series: FTB Series
• Steam Trap Type: Float & Thermostatic
• Body Material: Cast Iron
• Steam Trap Connection Size: 2-1/2 inches
• Steam Trap Mounting: Same Side
• Max Pressure: 175 psi
• Weight: 100.00 lbs
