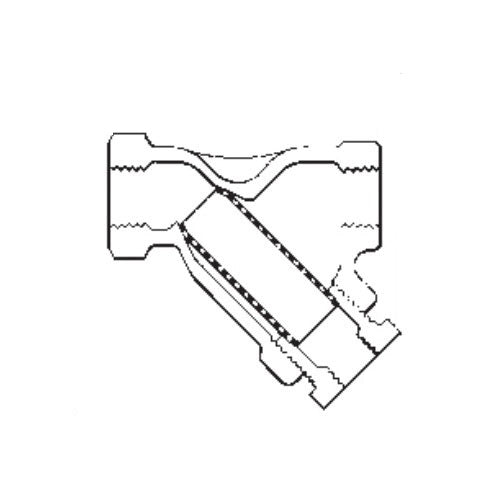

Spirax Sarco 60295 3/4 NPT IT Y-Type Strainer Cast Iron with 60-100 Mesh Screen

Product Description

The Spirax Sarco 60295 is a three-quarter inch NPT Y-type strainer designed for steam systems. Its cast iron construction and graphite seals provide durability and reliability in various applications. This strainer is engineered to remove solid particles from the steam supply, thus enhancing the overall quality of the steam used in systems.

• Designed for three-quarter inch NPT connections
• Constructed with a cast iron body for long-lasting performance
• Includes a one-half inch NPT blow-off for easy maintenance

Product Highlights

This product features a maximum saturated steam pressure of two hundred fifty psig and a maximum allowable temperature of four hundred six degrees Fahrenheit, making it suitable for demanding environments.

Product Information

Standard Information

• Brand: Spirax Sarco
• Manufacturer: Spirax-Sarco Inc

Technical Specifications

• Nominal Size: 3/4 in
• Blow-Off Size: 1/2 in NPT
• Body Material: Cast Iron
• Overall Length: 4.6 in
• Connection Type: NPT
• Softgoods Material: Graphite
