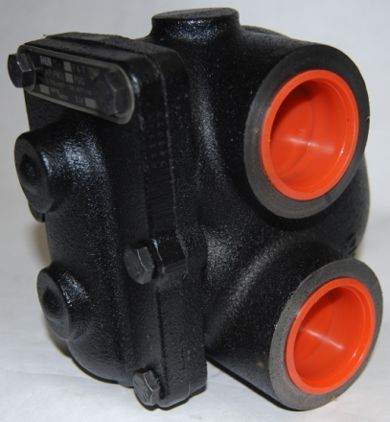

Spirax-Sarco 59197 FT-150 - 1-1/4 Float & Thermostatic Trap

Product Description

Spirax-Sarco offers the FT-150 steam trap, model number 59197. This model features a 1-1/4 trap connection in a same-side parallel setup. The trap is built from cast iron material and can handle a maximum pressure of 150 psi. The FT-150 is designed for use in heat exchange services that require efficient handling of steam and condensate.

• Maximum operating pressure of 150 psi
• Continuous drainage capabilities for efficient steam management
• Constructed from durable cast iron material

Product Highlights

The FT-150 model is suitable for low, medium, and high-pressure steam mains. It is a reliable choice for systems with variable loads and is effective in venting air and non-condensable gases.

Product Information

Standard Information

• Brand: Spirax-Sarco
• MPN: 59197

Technical Specifications

• Model: FT-150
• Series: FT Series
• Steam Trap Type: Float & Thermostatic
• Body Material: Cast Iron
• Steam Trap Connection Size: 1-1/4
• Steam Trap Mounting: Same Side
• Max Pressure: 150 psi
• Weight: 30.00 lbs
