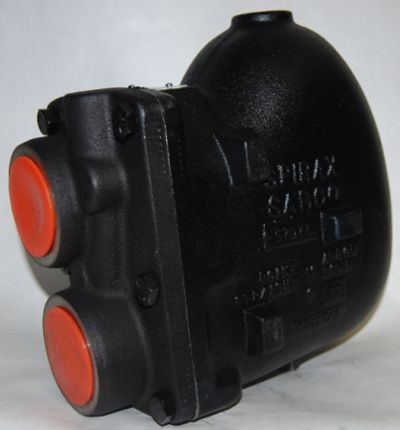

Spirax Sarco 58495 FT-200 1-1/2 NPT Float & Thermostatic Steam Trap

Product Description

The Spirax Sarco model 58495 is a Float and Thermostatic Steam Trap designed for efficient condensate discharge. This trap features a float valve that continuously discharges condensate at steam temperature while allowing non-condensable gases to escape through a balanced pressure thermostatic air vent.

This trap is suitable for applications requiring reliable condensate handling at varying pressure levels. With a maximum pressure rating of 200 psi and a temperature rating of four hundred fifty degrees Fahrenheit, it is ideal for use in heating systems and other processes involving steam.

• Float valve mechanism for continuous discharge of condensate
• Thermostatic air vent for efficient gas release
• Made of cast iron for durability

Product Highlights

Reliable design for effective steam management in various applications.

Product Information

Standard Information

• Brand: Spirax Sarco
• MPN: 58495

Technical Specifications

• Dimensions: 9.1 in H x 5.75 in W
• End Style: FNPT
• Length: 10-3/4 in
• Material: Cast Iron
• Nominal Size: 1-1/2 in
• Pressure Rating: 200 psi
• Series: FT200
• Temperature Rating: 450 deg F
