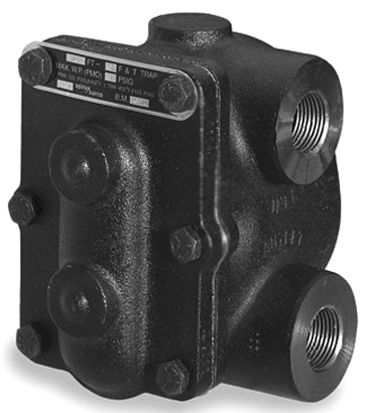

Spirax-Sarco 58481 FT-200 - 1 Cast Iron Float & Thermostatic Trap

Product Description

The Spirax-Sarco float and thermostatic (F&T) steam trap, model FT-200, has a one-inch trap connection and is designed for same side parallel installation. This construction allows steam to enter on one side, while condensate discharges from the same side, ensuring effective operation.

• Maximum operating pressure of 200 psi
• Continuous drainage suitable for various steam applications
• Standard with stainless steel internal parts for durability

Product Highlights

The FT-200 is ideal for use in low, medium, and high pressure steam mains, making it adaptable for various industrial applications. It effectively vents air and non-condensable gases, assisting in maintaining system efficiency.

Product Information

Standard Information

• Brand: Spirax-Sarco
• Model: FT-200

Technical Specifications

• MPN: 58481
• Body Material: Cast Iron
• Steam Trap Type: Float & Thermostatic
• Steam Trap Connection Size: 1 inch
• Steam Trap Mounting: Same Side
• Max Pressure: 200 psi
• Weight: 15.00 lbs
• Series: FT Series
