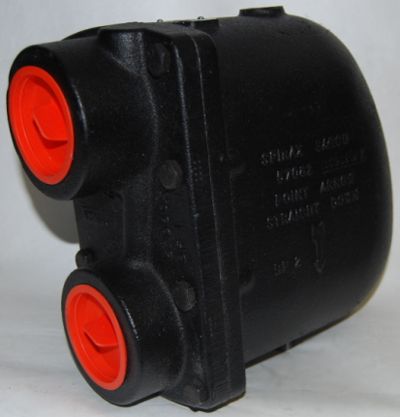

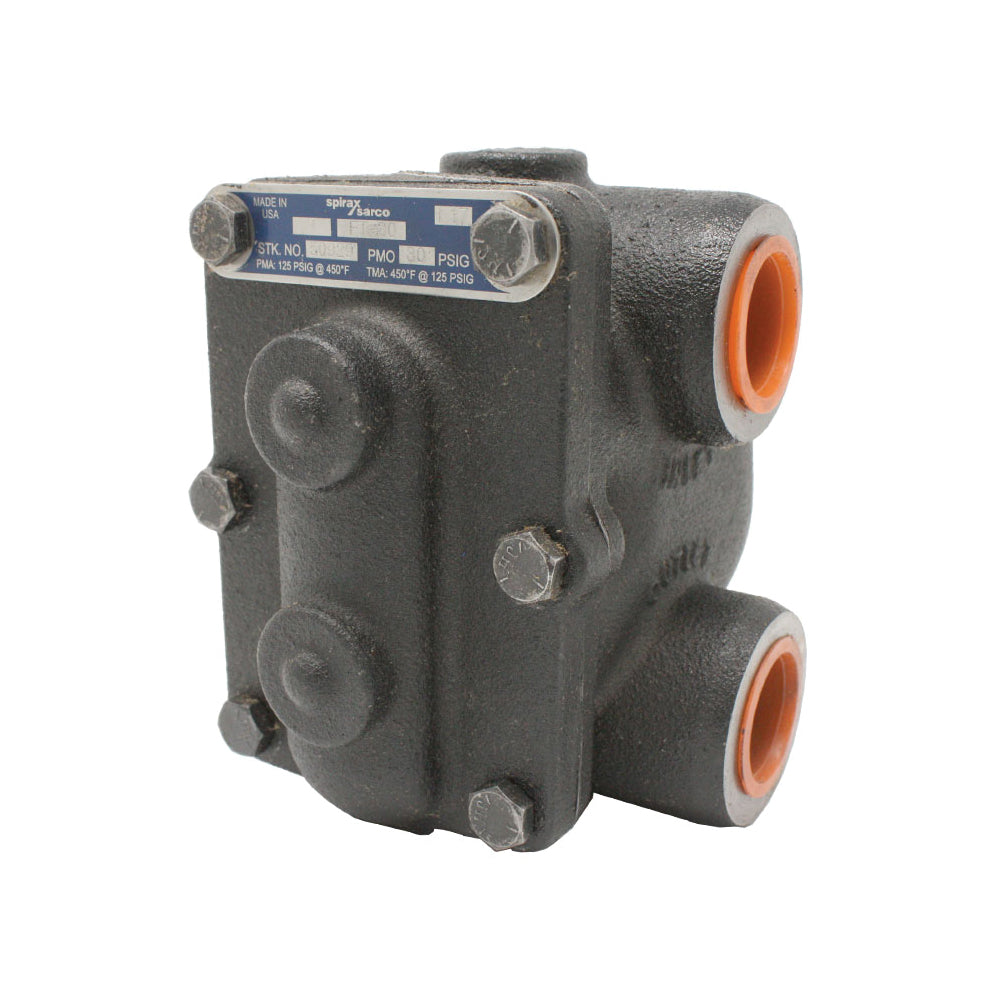

Spirax Sarco 57066 FT125 Float and Thermostatic Steam Trap

Product Description

The Spirax Sarco FT125 Float and Thermostatic Steam Trap, MPN 57066, is engineered for effective condensate removal in steam systems. This unit continuously discharges condensate at steam temperature while also venting non-condensable gases through a built-in thermostatic air vent. The trap features a robust cast iron construction designed to withstand demanding operating conditions.

• Nominal size of two inches
• Pressure rating of 125 psi
• Maximum temperature of 450 degrees Fahrenheit

Product Highlights

Designed for continuous drainage, the Spirax Sarco FT125 steam trap provides reliable performance in various steam applications, ensuring efficient operation and lower maintenance needs.

Product Information

Standard Information

• Brand: Spirax Sarco
• MPN: 57066

Technical Specifications

• End Style: FNPT
• Length: 9.8 inches
• Material: Cast Iron
• Nominal Size: 2 inches
• Pressure Rating: 125 psi
• Series: FT125
• Temperature Rating: 450 degrees Fahrenheit
