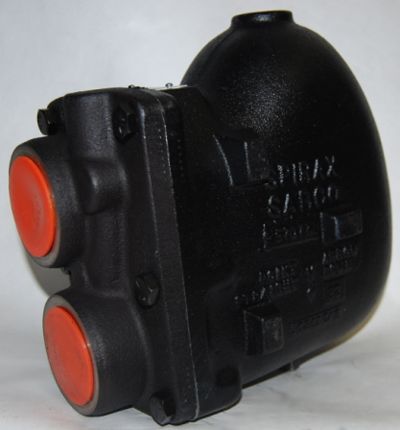

Spirax Sarco 57062 FT-125 1-1/2 Inch 125 psig Steam Trap Cast Iron

Product Description

The Spirax Sarco FT-125 1-1/2 inch steam trap, with model number 57062, is crafted to effectively manage condensate in your steam systems. This float and thermostatic (F&T) trap is built with durable cast iron and is designed to work under a maximum pressure of 125 psig. With its same side parallel configuration, it ensures efficient flow and prevents air lock.

• Efficient condensate removal in steam systems
• Durable cast iron construction ensures longevity
• Capable of handling up to 4,200 pounds per hour of condensate

Product Highlights

The FT-125 model is an excellent choice for applications requiring continuous drainage such as heat exchangers. It features stainless steel internals for corrosion resistance and a 1-1/2 inch trap connection size for ample flow.

Product Information

Standard Information

• Brand: Spirax Sarco
• Model: FT-125

Technical Specifications

• Body Material: Cast Iron
• Operating Pressure: up to 125 psig
• Capacity: 4,200 lbs/hr
• Connection Size: 1-1/2 inches
• Configuration: Same Side Parallel
