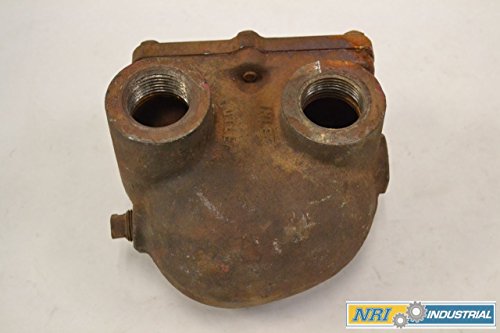

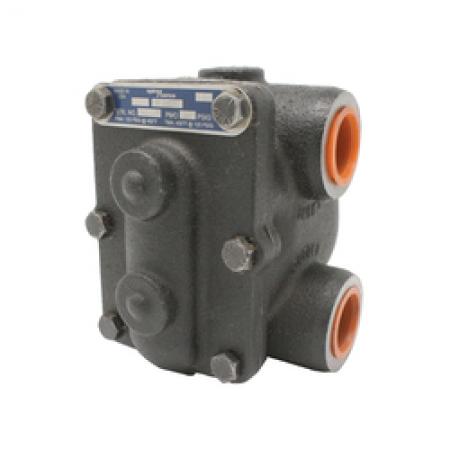

Spirax Sarco 50927 FT-15 1 in. 450F 15 psig Steam Trap

Product Description

The Spirax Sarco 50927 FT-15 1 in. 450F 15 psig Steam Trap is designed for effective condensate removal in steam systems. It features a float valve mechanism that discharges condensate continuously at steam temperature and a balanced pressure thermostatic air vent for non-condensable gases.

• Float mechanism for continuous condensate discharge
• Robust cast iron construction
• Suitable for steam pressures up to 15 psi

Product Highlights

The Spirax Sarco FT-15 Steam Trap provides dependable performance for industrial steam systems. Its durable cast iron design ensures longevity, and the float valve mechanism allows for efficient condensate drainage.

Product Information

Standard Information

• Brand: Spirax Sarco
• Nominal Size: 1 in
• Pressure Rating: 15 psi
• Temperature Rating: 450 deg F

Technical Specifications

• Material: Cast Iron
• End Style: FNPT
• Length: 4.6 in
• Dimensions: 5.75 in H x 6.2 in W
• Series: FT15
• Applications: All process equipment, unit heaters, air heating coils, heat exchangers, steam main drip stations
