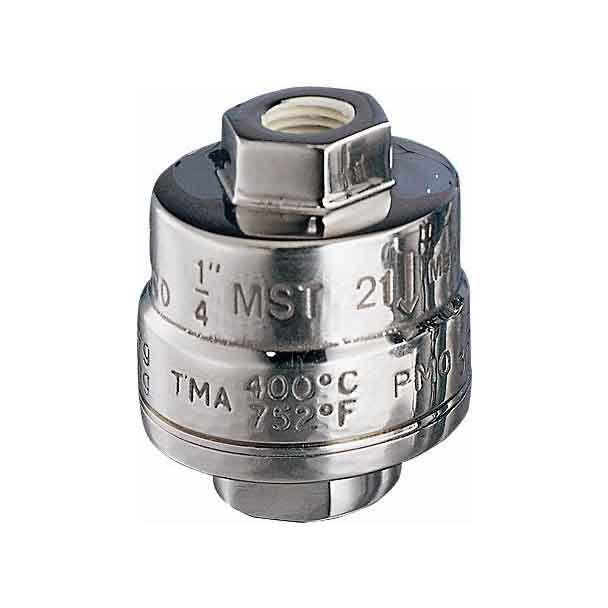

Spirax Sarco 1250990 MST21 Balanced Pressure Thermostatic Steam Trap

Product Description

The Spirax Sarco 1250990 MST21 balanced pressure thermostatic steam trap is designed for service up to 304 psi. This steam trap features a welded stainless steel element that adjusts automatically over varying pressure ranges. It can discharge condensate effectively at approximately 40 degF subcool. This product can be installed in both horizontal and vertical pipelines, making it suitable for applications such as tracing, drips, sterilizers, and low capacity air vents.

• Self-adjusting stainless steel element
• Suitable for horizontal and vertical installation
• Ideal for various steam applications

Product Highlights

The MST21 steam trap is highly versatile and maintains performance under high temperatures and pressures.

Product Information

Standard Information

• Brand: Spirax Sarco
• MPN: 1250990

Technical Specifications

• Nominal Size: 1/2 in
• End Style: NPT
• Material: Stainless Steel
• Pressure Rating: 304 psig Operating
• Temperature Rating: 518 deg F Operating
• Dimensions: 2.4 in H
• Series: MST21
