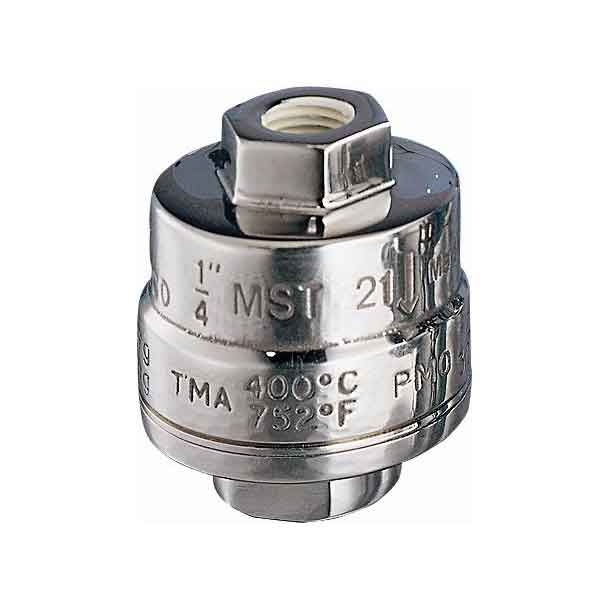

Spirax Sarco 1250990 Balanced Pressure Thermostatic Steam Trap 1/2 Inch NPT 304 PSI

Product Description

Introducing the Spirax Sarco 1250990, a balanced pressure thermostatic steam trap designed for high-performance in steam applications. This steam trap operates efficiently under a maximum pressure of 304 psi, featuring a 1/2 inch NPT connection suitable for various industrial setups.

• Self-adjusting welded stainless steel element optimizes performance across pressure ranges.
• Capable of discharging condensate at around 40 degrees Fahrenheit below steam temperature.
• Flexible installation options in both horizontal and vertical pipelines.

Product Highlights

The Spirax Sarco 1250990 steam trap showcases robust construction and a design that accommodates a broad spectrum of applications including tracing, drips, sterilizers, and low capacity air vents.

Product Information

Standard Information

• Brand: Spirax-Sarco
• MPN: 1250990
• Model: MST21
• Type: Balanced Pressure Thermostatic Steam Trap
• Material: Stainless Steel
• Connection Size: 1/2 inch
• Maximum Pressure: 304 psi

Technical Specifications

• Weight: 1.10 lbs
• Mounting: Vertical
• Discharge Temperature: Approx. 40°F subcool
