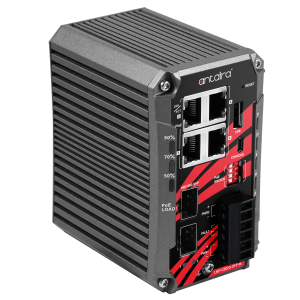

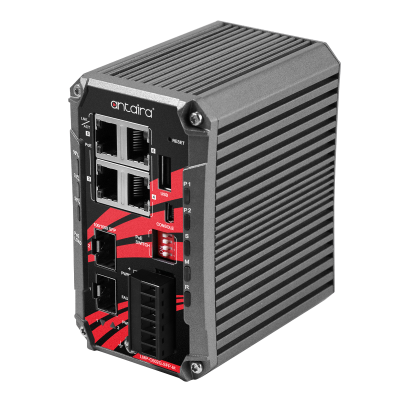

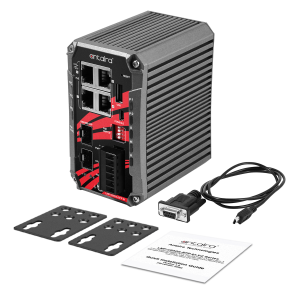

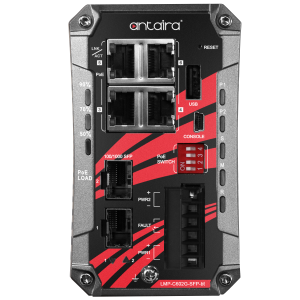

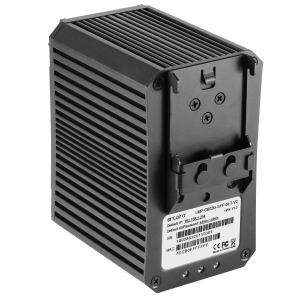

Spike Electric Controls BTV2 6-Port Managed Gigabit PoE++ Switch

Product Description

The Spike Electric Controls BTV2 is a managed Gigabit Ethernet switch that operates effectively in industrial applications. This switch has six ports, comprising four Gigabit PoE++ ports and two SFP slots for fiber connectivity. It meets IEEE 802.3at/af/bt standards and can deliver up to ninety watts per PoE++ port.

• Four Gigabit PoE++ ports and two SFP slots
• Network redundancy with RSTP/MSTP and ERPS
• Configuration options via Web, Telnet, SSH, and CLI

Product Highlights

The BTV2 switch supports various advanced network management features, making it suitable for complex network environments.

Product Information

Standard Information

• Category: Ethernet Switch (PoE)
• Total Ports: 6

Technical Specifications

• Ethernet Ports: 4 Gigabit (10/100/1000TX) PoE/PoE++ (90 watts/port)
• Fiber Ports: 2 SFP slots (100/1000)
• MAC Table Size: 8 K
• PoE Power Output: 240 Watts
• Input Voltage: Redundant 48 to 55 VDC
• Weight: 2.29 lbs
• Dimensions: 64.9 x 110 x 89.8 mm (W x H x D)
• Operating Temperature: -10 to 65 degrees Celsius
• Storage Temperature: -40 to 85 degrees Celsius
• Humidity: 5 to 95% non-condensing
