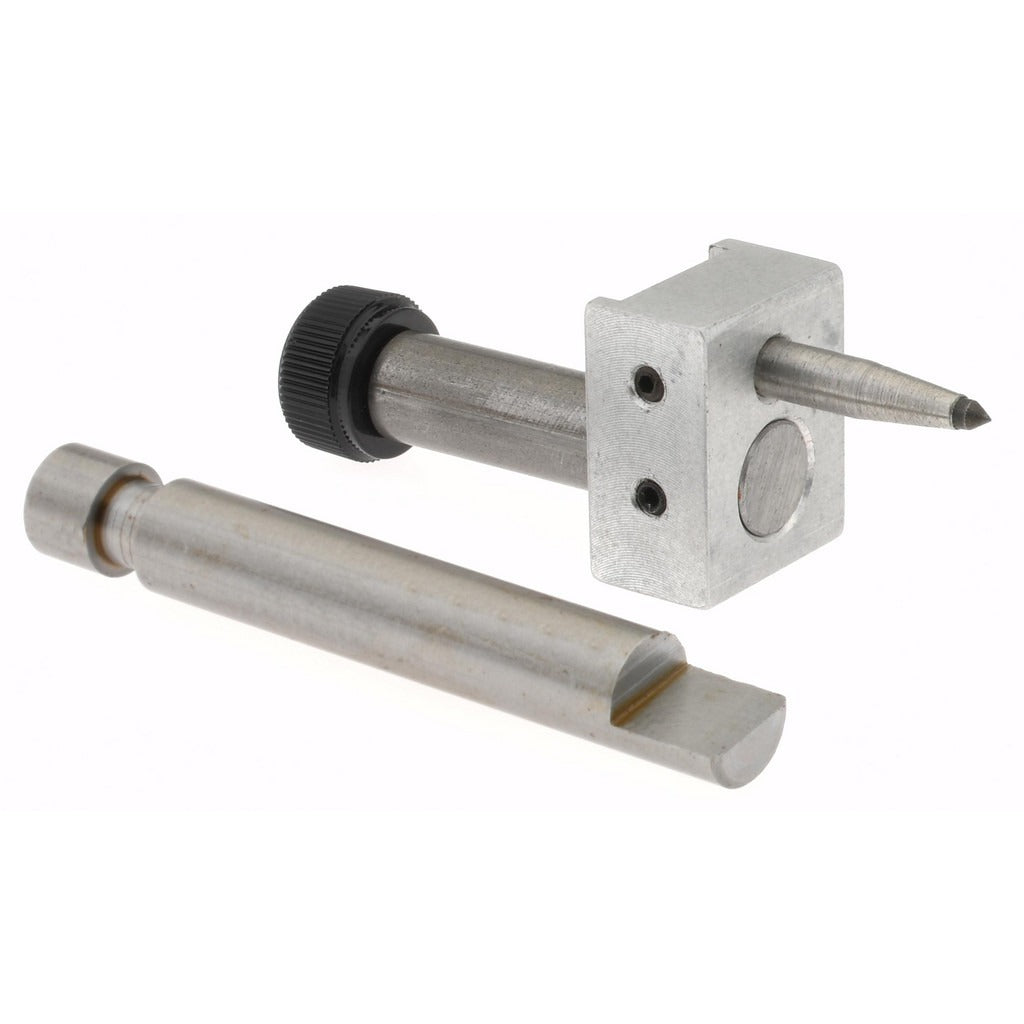

Spi Z2526-LK Caliper Layout Kit 2 Pc 6 Inch

Product Description

The SPI Z2526-LK is a 2-piece caliper layout kit designed to extend the functionality of 6-inch dial, vernier, and electronic calipers. The kit provides the necessary accessories for transferring measurements and scribing layout lines directly from a caliper, reducing the need for secondary measuring tools on the bench or job site. It is a compact, lightweight accessory at 0.06 pounds, suited for machinists, toolmakers, and precision measurement technicians who rely on calipers as a primary layout instrument.

This layout kit is intended for use in machine shops, fabrication environments, and precision tool rooms. It pairs with standard 6-inch dial, vernier, and electronic calipers to allow direct layout work from caliper jaws. The kit is well-suited for tasks where scribing or transferring a measured dimension to a workpiece is required without removing the caliper from the measurement position.

Key Features

• 2-piece kit provides a complete layout accessory set for 6-inch calipers
• Compatible with dial, vernier, and electronic caliper types in the 6-inch range
• Lightweight at 0.06 pounds for easy handling and portability
• Allows direct layout scribing from caliper measurement position

Compatibility

Designed for use with 6-inch dial, vernier, and electronic calipers.

Installation Notes

This layout kit is a caliper accessory and does not require installation in the traditional sense. Attachment should be performed according to the caliper manufacturer's guidance for accessory use. Ensure the caliper is at rest and not under load before attaching or removing the kit components. Handle scribing tips with care to avoid injury and protect precision surfaces from unintended marking.
