Spi MS170116001 Spare Part Kit Single Beam Height Gages

Product Description

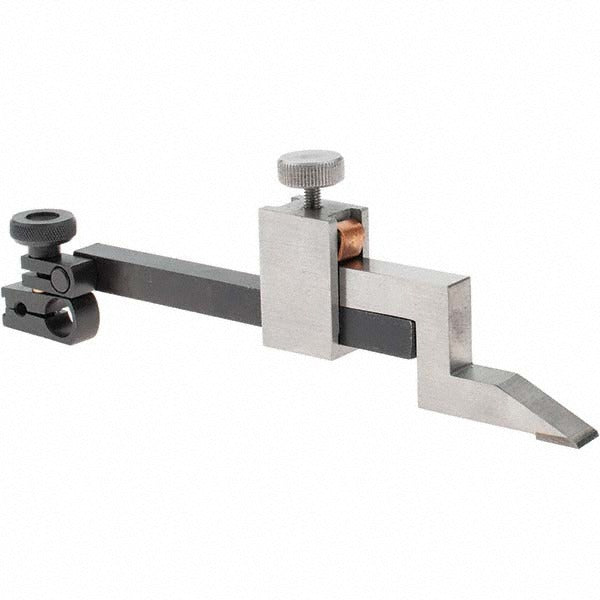

The SPI MS170116001 is a spare part kit designed to support maintenance and repair of single beam height gages. The kit contains a No. 10 indicator bar clamp, a No. 5 scriber clamp, and a No. 6 scriber, giving technicians the consumable and wear components most commonly needed to keep a height gage in accurate, reliable service. Height gages are precision layout and inspection tools used on surface plates, and maintaining their clamping and scribing components is essential to preserving measurement integrity. This kit is intended for metrology and quality-control personnel who service precision measurement equipment in tool rooms, inspection departments, and production environments.

This spare part kit is suited for single beam height gage service in machine shops, tool rooms, and quality inspection labs. It provides direct replacement parts that restore the height gage to factory-configured function without the need to source individual components separately. The included clamp and scriber components cover the most frequently replaced items in routine height gage upkeep.

Key Features

• Includes No. 10 indicator bar clamp for securing dial or digital indicators to the beam
• Includes No. 5 scriber clamp for attaching scribing attachments
• Includes No. 6 scriber for layout and marking tasks
• Consolidated spare parts kit reduces downtime during gage servicing
• Packaged as a single unit (package quantity: 1)

Compatibility

Designed as a spare part kit for use with single beam height gages.

Installation Notes

Replacement of height gage clamps and scribers should be performed by a qualified metrology technician or tool room professional. Before servicing, remove the height gage from active use and place it on a stable, clean surface plate or workbench. Follow the gage manufacturer's assembly guidance when reinstalling clamp components to avoid damage to the beam or indicator mounting surfaces. After reassembly, verify gage zero and repeatability before returning the instrument to service.
