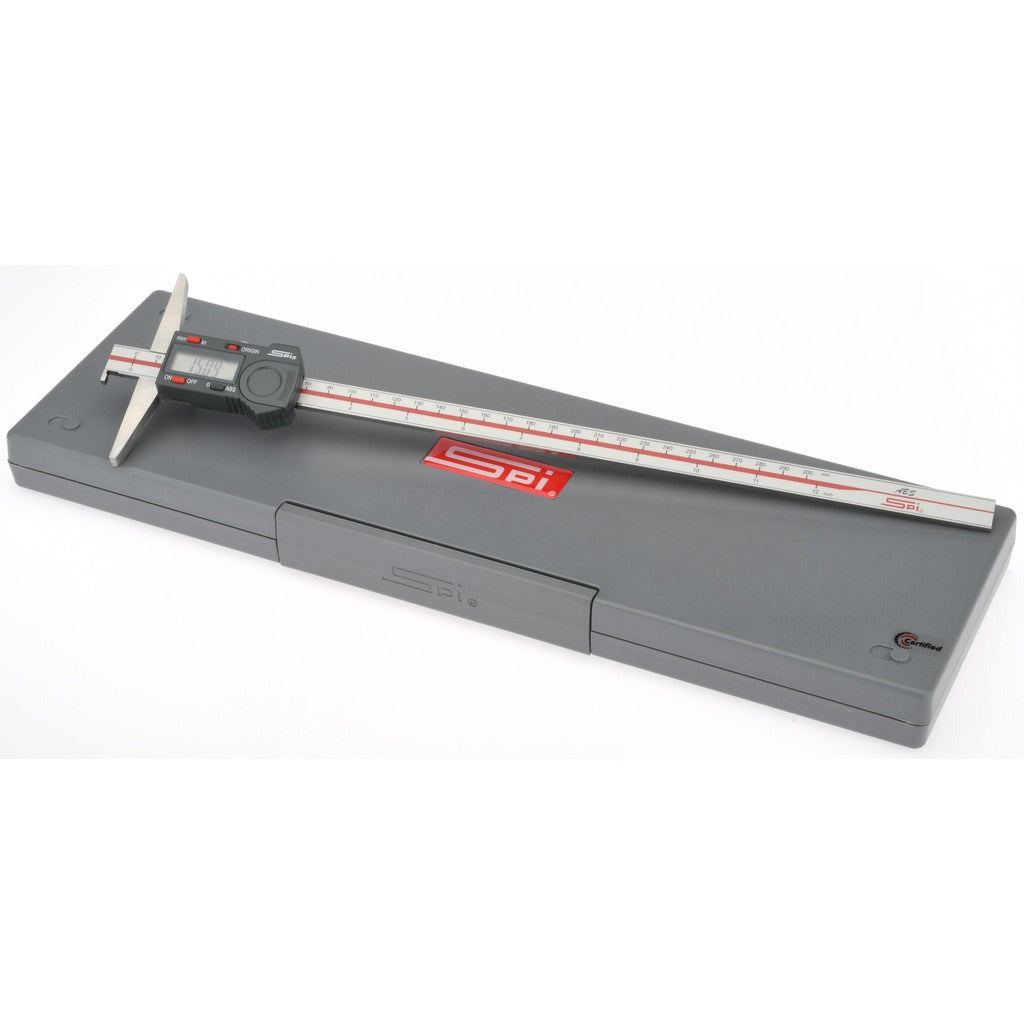

Spi MS160719032 Electronic Depth Gage 0-300mm Nist

Product Description

The SPI MS160719032 is a digital electronic depth gage designed for precise linear measurement in machining, fabrication, and quality control environments. It measures from 0 to 300mm with a resolution of 0.01mm (0.0005 inches) and an accuracy of 0.04mm (0.0015 inches), making it suitable for verifying step depths, slot depths, and shoulder heights on machined components. The gage features an embedded linear scale and supports SPC and USB data output for integration with statistical process control systems. A NIST traceability certification is included, meeting documentation requirements for calibrated measurement environments. Installation and operation are handled by machinists, quality technicians, and tool and die professionals.

This depth gage is used in residential and commercial machine shops, production floors, and inspection departments where repeatable, documented dimensional measurement is required. The 4-inch (101.60mm) base provides stable contact across wider workpiece surfaces. The unit ships with a CR2032 battery installed and is housed in an ABS plastic case for bench and field storage. It is appropriate for any application requiring sub-millimeter depth verification without mechanical dial or vernier readout.

Key Features

• 0 to 300mm measurement range with 0.01mm resolution and 0.04mm accuracy
• NIST traceability certification included for calibrated inspection use
• SPC and USB data output for direct integration with quality control software
• Embedded linear scale for reliable, repeatable readings
• Automatic shut-off extends CR2032 battery life
• 4-inch (101.60mm) base length for stable contact on broad surfaces

Compatibility

Designed as a general-purpose electronic depth gage suitable for standard bench and floor measurement applications where a 0 to 300mm digital depth gage is specified.

Installation Notes

Electronic depth gages require no permanent installation and are operated by hand by machinists or quality inspection personnel. Before use, zero the gage on a known flat reference surface and verify the battery is seated correctly. Avoid exposing the unit to coolants or liquids, as this model carries no water resistance rating. Store in the included ABS case when not in use to protect the base and measuring surfaces from damage.
