Spi MS160412016 Indicator Positioner Holder 175 Lb

Product Description

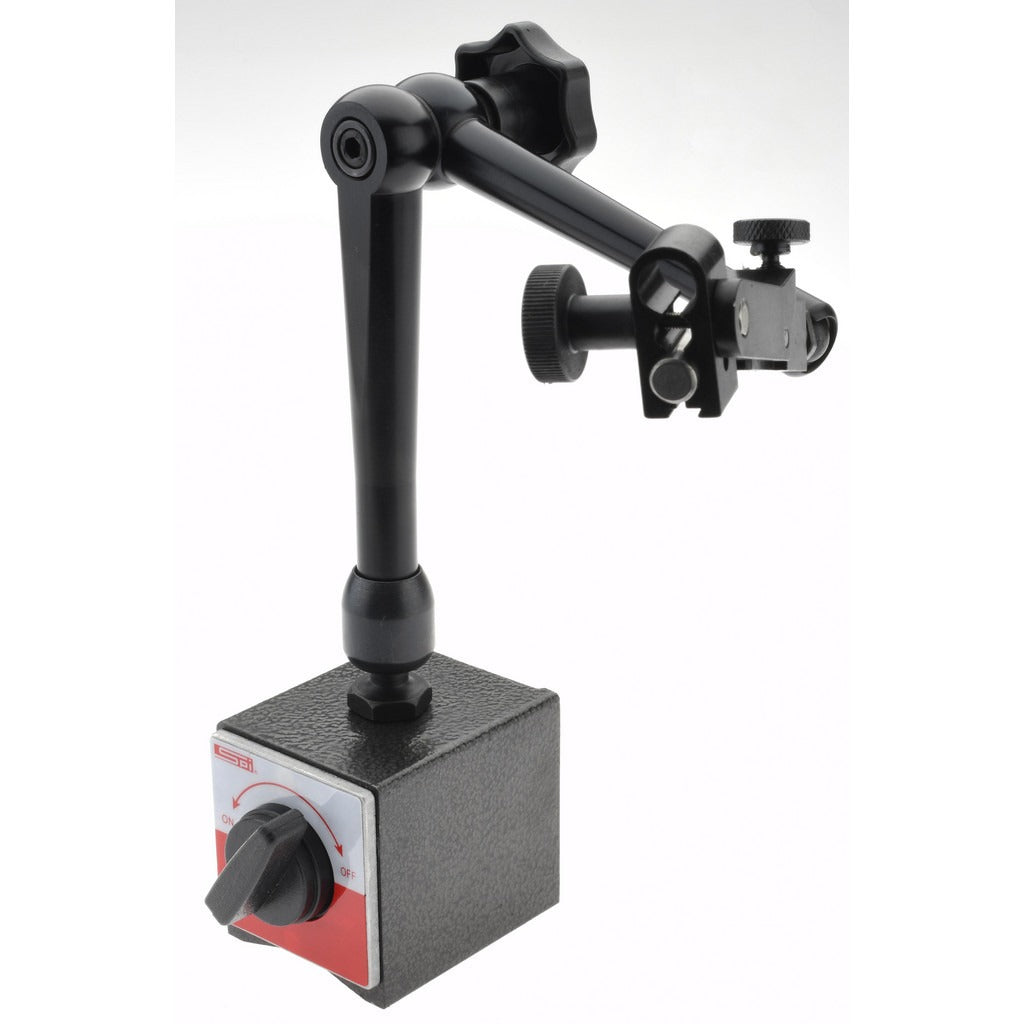

The SPI MS160412016 is a magnetic-base indicator positioner holder designed for precision measurement tasks in machine shop and metrology environments. It features an articulated arm mounted to a rectangular magnetic base with a 175-pound magnetic pull force, providing a secure, vibration-resistant hold on ferrous machine surfaces. Fine adjustment capability allows technicians to position dial indicators, test indicators, and similar instruments with high positional accuracy. The base stands approximately 2.17 inches tall and extends 60 mm in length, and the overall arm assembly reaches 365 mm in total length. The unit ships complete with the magnetic base included. This tool is installed by machinists, metrologists, and quality control technicians performing runout checks, surface comparisons, or setup verification.

This indicator holder is suited for use in precision machining, grinding, and inspection setups where a stable, repositionable instrument mount is required. The articulated arm design allows the indicator to be positioned at virtually any angle relative to the workpiece or machine table. It is appropriate for both manual machining centers and inspection benches equipped with ferrous steel surfaces. The magnetic on/off base allows the user to reposition the holder quickly without disturbing adjacent fixturing.

Key Features

• 175-pound magnetic pull force holds securely to ferrous machine surfaces
• Articulated arm allows multi-axis positioning of the attached indicator
• Fine adjustment mechanism enables precise final positioning without backlash
• Rectangular magnetic base with 60 mm base length and 55 mm base height
• 365 mm overall arm length provides extended reach for deep-set measurement points
• Includes magnetic base with arm — no additional mounting hardware required

Compatibility

Designed as a general-purpose magnetic indicator holder compatible with standard dial indicators and test indicators that mount via conventional dovetail or post-style clamp connections typically found on this class of positioner arm.

Installation Notes
