Spi CMS220519022 Ball Anvil Electronic Micrometer

Product Description

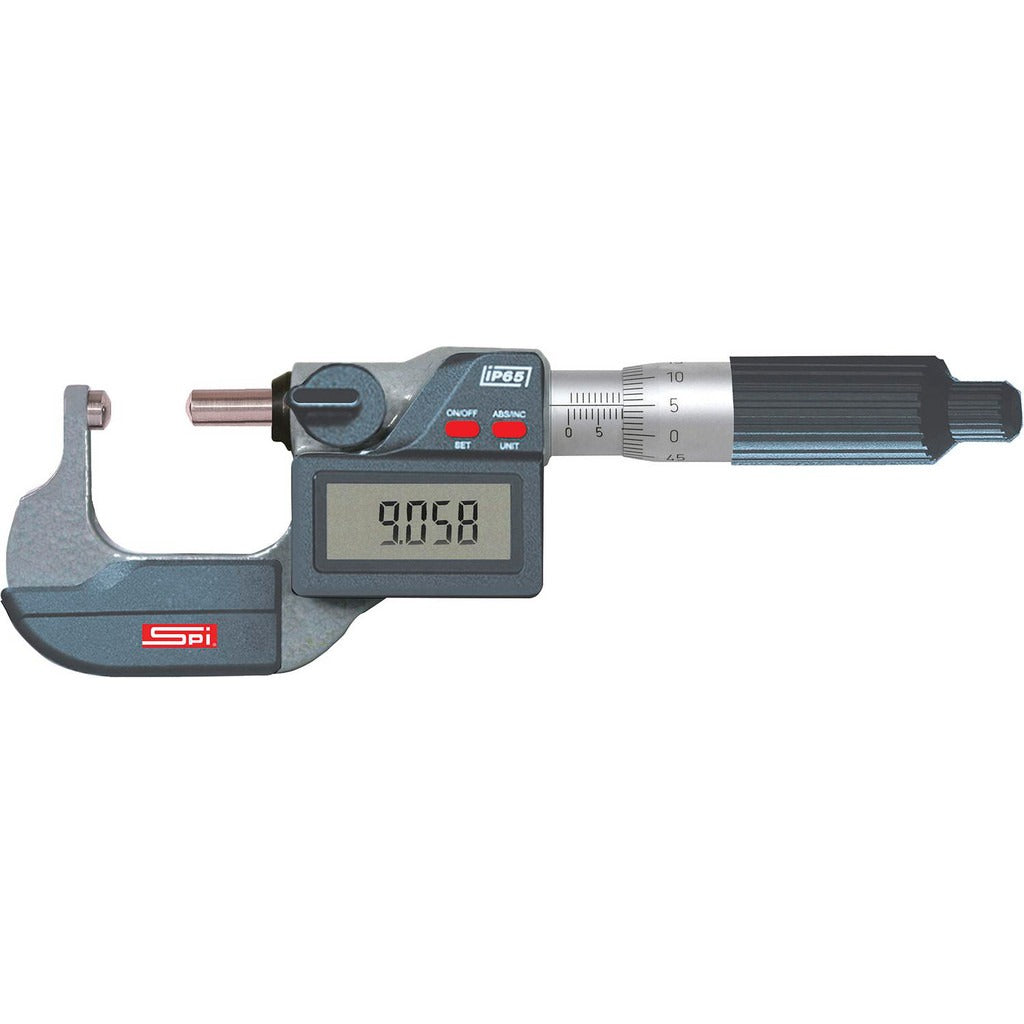

The SPI CMS220519022 is an electronic ball anvil micrometer designed for precision outside measurement of curved, convex, and cylindrical workpiece surfaces. It covers a measurement range of 1 to 2 inches with a resolution and graduation of 0.0001 inches, making it suitable for high-accuracy dimensional inspection tasks. The carbide ball anvil and spherical spindle contact points are sized at 6.5 mm diameter each, allowing consistent contact on radius surfaces where a flat anvil would rock or seat improperly. A ratchet thimble ensures repeatable measuring force, and a positive lock nut holds readings during transfer. Calibrated to ASME B89.1.13, this instrument is used by machinists, quality control technicians, and tool-and-die professionals.

This micrometer is intended for shop-floor and inspection-room use where curved or spherical surfaces require accurate outside diameter or wall-thickness measurements. Typical applications include measuring tubing wall thickness, ball bearings, convex radii, and similar geometry that flat-anvil micrometers cannot reliably contact. The digital counter display eliminates interpolation error during reading. At approximately 1 pound, the instrument is hand-portable for bench or in-process inspection work.

Key Features

• Electronic digital display with 0.0001 inch graduation for direct, error-free reading
• Carbide ball anvil and 6.5 mm spherical spindle for accurate contact on curved surfaces
• Ratchet thimble provides consistent, repeatable measuring force
• Positive lock nut secures the spindle position for transfer measurements
• Rotating spindle design accommodates alignment to workpiece geometry
• Calibrated and conforms to ASME B89.1.13 standard

Compatibility

Designed as an OEM-style precision measuring instrument suitable for general metrology, inspection, and quality control applications requiring ball-contact outside micrometer measurements in the 1 to 2 inch range.

Installation Notes

Handle and store in a clean, temperature-stable environment to maintain calibration accuracy. Before use, verify zero setting at the lower end of the measurement range per the manufacturer calibration procedure. Avoid dropping or applying side-load force to the spindle, as this can damage the measuring faces or affect calibration. Periodic recalibration against a certified gauge block or standard is recommended per shop quality system requirements.
