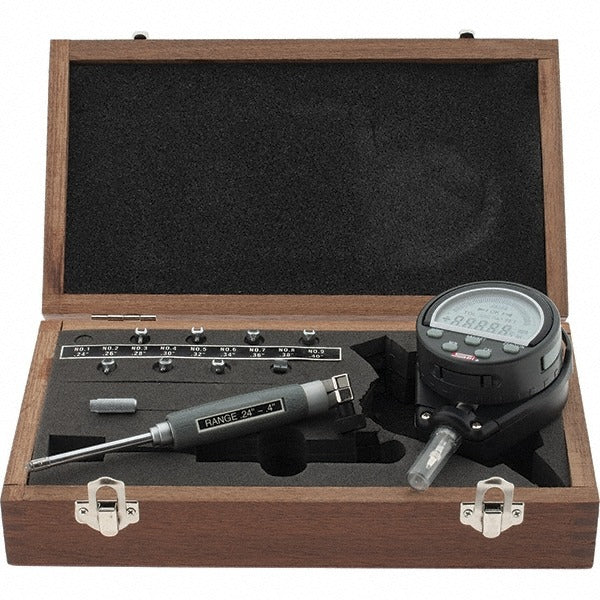

Spi CMS160809001 Electronic Bore Gage 0.24-0.4 in

Product Description

The SPI CMS160809001 is an electronic bore gage designed for precision internal diameter measurement in manufacturing, machining, and inspection environments. It covers a measuring range of 0.24 to 0.4 inches (6.00 to 10.00 mm) with a resolution of 0.0001 inches (0.002 mm) and an accuracy of 0.012 mm. The unit includes an indicator and anvil, making it ready for use straight out of the package. Data output capability allows measurements to be sent directly to a PC or data logger for quality documentation. This gage is intended for use by machinists, quality control technicians, and precision measurement professionals.

The CMS160809001 is suited for small-bore internal measurement tasks in tool rooms, production floors, and inspection departments. The 0.24 to 0.4 inch range targets small bores common in precision machined components. A gage depth of 40.00 mm allows measurement access into moderately deep bores. The included indicator and anvil reduce the need for additional accessories at setup. Data output makes this gage a practical choice for shops running statistical process control or requiring documented measurement records.

Key Features

• Measuring range of 0.24 to 0.4 inches (6.00 to 10.00 mm) for small-bore applications
• Resolution of 0.0001 inches (0.002 mm) for high-precision readings
• Accuracy to 0.012 mm for reliable inspection results
• Data output port for integration with PC-based data collection or SPC software
• Includes indicator and anvil — no additional accessories required for basic use
• Powered by a CR2032 battery for cordless operation

Compatibility

Designed as a precision small-bore measurement tool suitable for use in standard tool room and production inspection applications where the bore diameter falls within the 0.24 to 0.4 inch range.

Installation Notes

This gage is installed and operated by qualified machinists or metrology technicians. Before use, verify the gage is zeroed against a calibrated ring gage master appropriate to the measuring range. Handle the contact anvil carefully to avoid damage that would affect accuracy. Follow the manufacturer calibration interval recommendations to maintain measurement traceability.
