Spi CMS160726140 Dial Test Indicator Kit 8 Pc

Product Description

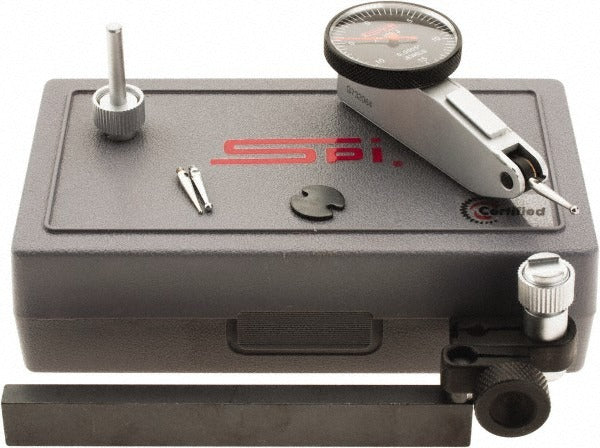

The SPI CMS160726140 is an 8-piece dial test indicator kit built for precision measurement in machining, inspection, and metrology applications. The horizontal-style indicator features a 1.25-inch dial diameter with a 0-15-0 reading scale, a measuring range of plus or minus 0.03 inches, and a dial graduation of 0.0005 inches, delivering accuracy to 0.0005 inches. The fully jeweled movement and satin chrome finish reflect the durability expected in a professional shop environment. Machinists, quality control technicians, and tool-and-die professionals are the primary users of this kit.

This kit is suited for surface plate work, lathe and mill setup, runout checking, and general dimensional inspection in both production and toolroom settings. The included dovetail stem and dovetail extensions allow flexible mounting across a wide variety of holding fixtures and magnetic bases. The fitted case keeps all components organized and protected between jobs, making this kit practical for bench use and field calibration work alike.

Key Features

• Fully jeweled movement for long service life and repeatable readings
• Dovetail stem with universal positioning for versatile setup angles
• Includes two contact points, 5/32-inch and 3/8-inch diameter dovetail extensions
• Height gage bar, universal clamp, and fitted case included
• Short form certificate of calibration included with each kit
• Satin chrome finish resists corrosion in shop environments

Compatibility

Designed for use with standard dovetail-style indicator holders, magnetic base arms, and height gage setups commonly found in machine shop and inspection room environments.

Installation Notes

Mounting and setup should be performed by a machinist or metrology technician familiar with dial indicator technique. Secure the dovetail stem firmly in the holder before taking measurements to prevent indicator movement that would affect readings. Avoid applying lateral force to the contact point beyond the rated measuring range, as this can damage the jeweled movement. Store the indicator in the fitted case when not in use to protect the mechanism and contact points.
