Spi CMS160409008 Electronic Height Gage 12 in Spc

Product Description

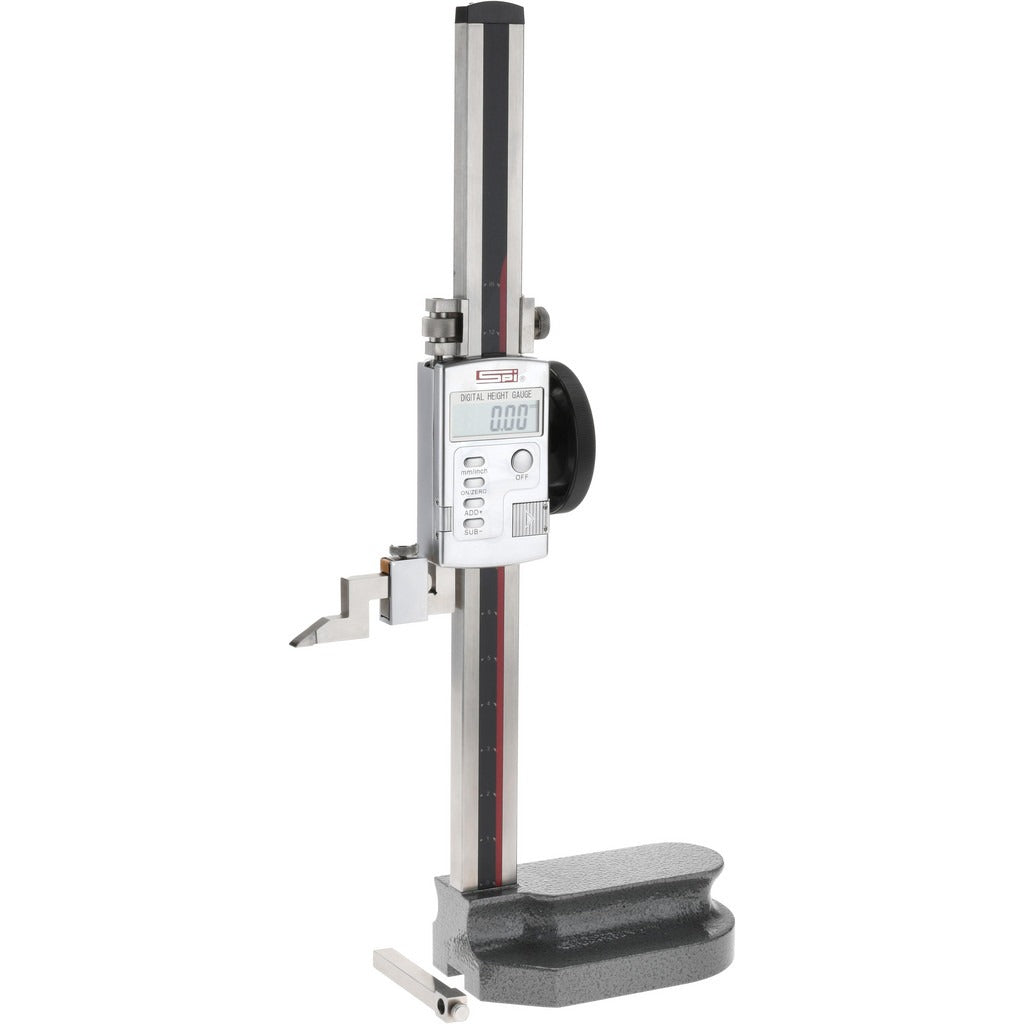

The SPI CMS160409008 is an electronic height gage designed for precision linear measurement in shop and inspection environments. It measures up to 12 inches (300 mm) with a resolution of 0.0005 inches (0.010 microns) and an accuracy of 0.0015 inches (0.040 mm). The gage features an LCD display for clear readout and supports SPC data output for direct integration with statistical process control systems. A smooth slider feed wheel and manual on/off control make it practical for repeated use during layout, inspection, and quality verification tasks. It ships with a short-form certificate of calibration and supports both inch and metric display modes.

This height gage is suited for dimensional inspection on surface plates in machine shops, tool rooms, and quality control departments. It is typically used by machinists, metrologists, and quality technicians verifying part dimensions, scribing layout lines, or establishing datum references. The inch/metric conversion feature makes it versatile across job types and inspection standards. The included calibration certificate supports traceability requirements common in ISO and AS9100 quality environments.

Key Features

• 12-inch (300 mm) maximum measurement range
• 0.0005-inch resolution for fine dimensional work
• SPC data output port for quality system integration
• Large LCD display with inch/metric conversion
• Smooth slider feed wheel for controlled stylus movement
• Includes short-form certificate of calibration for traceability

Compatibility

Designed as an OEM-style electronic height gage suitable for use on standard granite or cast-iron surface plates in shop and laboratory inspection setups.

Installation Notes

Electronic height gages are set up and operated by machinists, metrologists, and quality technicians — no installation trade license is required. Place the gage on a clean, flat surface plate and zero the display before taking measurements. Protect the column and base from impact and store the unit in its case when not in use. Do not expose the electronic components or SPC output port to cutting fluids or abrasive debris.
