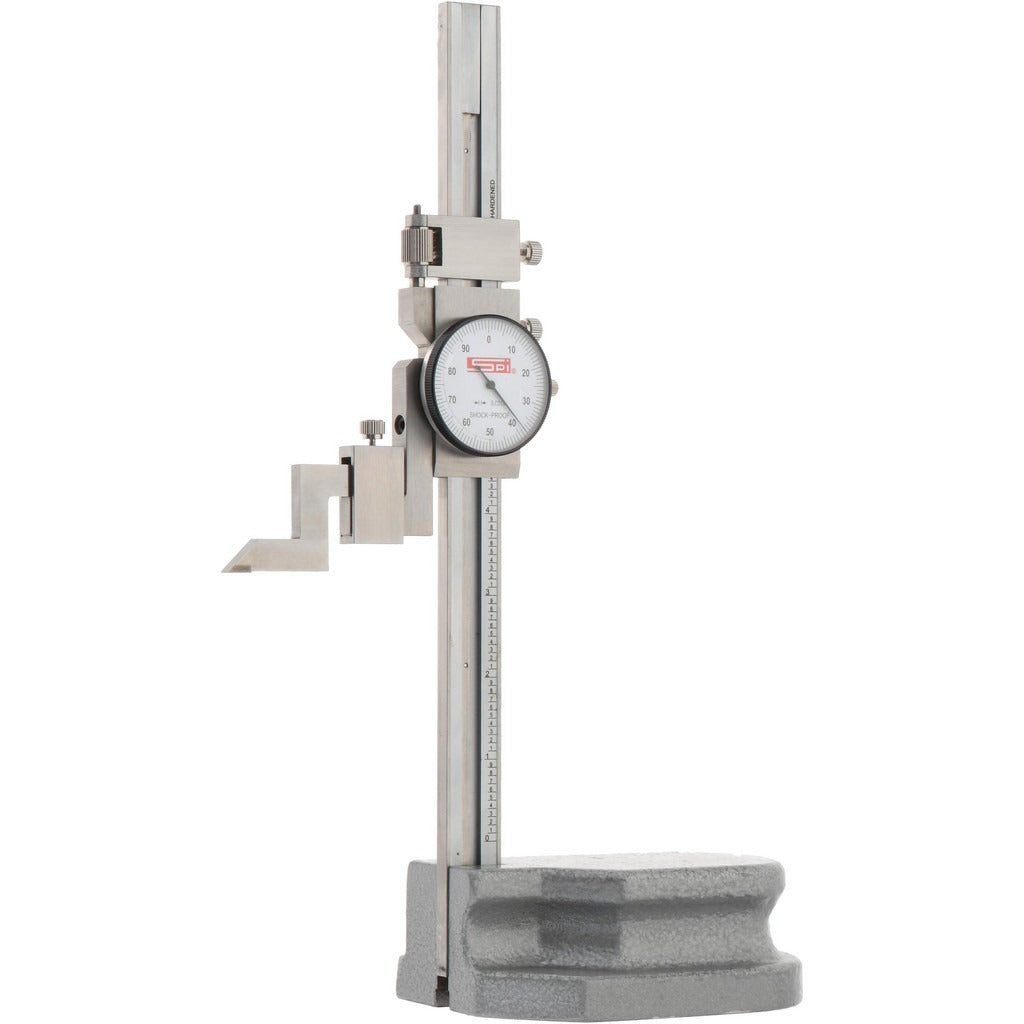

Spi CMS150410013 Dial Height Gage 6 in Stainless Steel

Product Description

The SPI CMS150410013 is a 6-inch stainless steel dial height gage designed for precise linear measurement on surface plates and layout tables. It delivers a graduation and accuracy of 0.001 inches, making it suitable for quality control, inspection, and toolroom applications where tight tolerances are required. The dial display provides direct, easy-to-read measurement readout without the need for a digital display or data output. The unit ships calibrated with NIST Traceability Certification, confirming that its accuracy is documented against national measurement standards. Machinists, metrologists, quality inspectors, and tool-and-die technicians are the primary users of this instrument.

This height gage is used in manufacturing and inspection environments including machine shops, toolrooms, quality labs, and production floor inspection stations. It is suited for both layout work and dimensional verification of machined parts. The fine adjustment feature allows precise positioning of the scriber or indicator contact point against a workpiece surface. The stainless steel construction resists corrosion and wear during repeated use in shop environments. It is appropriate for both light industrial and precision metrology applications where dial-type instruments are preferred over digital alternatives.

Key Features

• 0.001-inch graduation and 0.001-inch accuracy for precise dimensional measurement
• Dial display for direct, clear readout without digital electronics
• Fine adjustment mechanism for controlled, repeatable scriber positioning
• Stainless steel construction for corrosion resistance and long service life
• Ships calibrated with NIST Traceability Certification included

Compatibility

Designed as a standard surface-plate-based dial height gage suitable for use in any inspection or layout application requiring a 6-inch measuring range and dial readout.

Installation Notes

This instrument is used by quality inspectors, machinists, and metrologists on a flat reference surface such as a granite or cast iron surface plate. No power source or wiring is required. Handle the instrument carefully to avoid impacts that could affect calibration; recalibrate per your facility's quality management schedule if the gage is dropped or subjected to shock. Store in its protective case when not in use to preserve calibration integrity.
