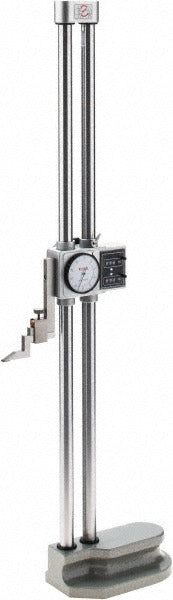

Spi CMS150410012 Stainless Steel Dial Height Gage 24 in

Product Description

The SPI CMS150410012 is a 24-inch stainless steel dial height gage designed for precision linear measurement on surface plates and inspection benches. It features a dial and counter display with a graduation of 0.001 inches and a stated accuracy of 0.002 inches, making it suitable for tight-tolerance inspection work. The gage is factory calibrated and ships with NIST traceability certification, satisfying documentation requirements in quality-controlled environments. A fine adjustment mechanism allows controlled scribe or contact positioning without disturbing the base setting. This instrument is handled by metrology technicians, quality control inspectors, and machinists working in manufacturing and tool room settings.

The CMS150410012 is used in dimensional inspection applications where height, step, and surface parallelism measurements must be recorded with documented accuracy. It is well suited for incoming inspection, in-process checks, and final verification on machined parts, castings, and fabricated assemblies. The base-mounted arm style keeps the contact point stable during fine adjustment. The 24-inch range accommodates tall workpieces common in heavy machining and fabrication shops. NIST traceability documentation supports ISO 9001 and AS9100 quality management system requirements.

Key Features

• 24-inch measuring range covers tall workpieces and assemblies
• 0.001-inch graduation with 0.002-inch stated accuracy for tight-tolerance inspection
• Dial and counter display provides direct reading without interpolation
• Fine adjustment mechanism enables precise scribe and contact positioning
• Stainless steel construction resists corrosion and wear in shop environments
• NIST traceability certification included for quality management compliance

Compatibility

Designed as an OEM-style precision height gage for use on standard surface plates and granite inspection tables common in machine shop and quality control environments.

Installation Notes

Height gages are set up and operated by metrology technicians and quality control personnel on a clean, flat surface plate. Before use, verify the surface plate is level and free of debris that could affect base seating. Handle the gage by the base or column and avoid impacts to the dial mechanism. Calibration should be verified periodically against a NIST-traceable reference standard per your facility quality plan.
