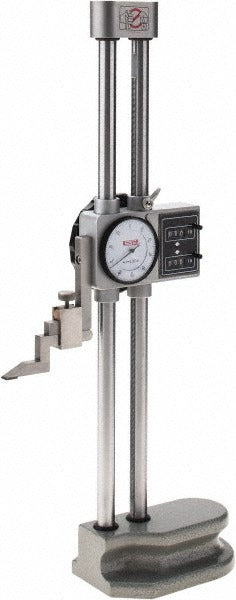

Spi CMS150410009 Stainless Steel Dial Height Gage 12 in

Product Description

The SPI CMS150410009 is a 12-inch stainless steel dial height gage designed for precise linear measurement in tool rooms, inspection departments, and machine shops. It reads to a graduation of 0.001 inches and holds an accuracy of 0.0015 inches, making it suitable for demanding dimensional inspection tasks. The dial and counter display allows technicians to read measurements quickly and with minimal error. The unit ships NIST traceable calibrated, so it is ready for use in quality-controlled environments without requiring a separate calibration step. Machinists, metrologists, and quality control technicians are the primary users of this instrument.

This height gage is suited for surface plate work in both production and inspection settings. The base-mounted arm style provides stable, repeatable positioning during use. Fine adjustment is included, allowing the operator to creep the measuring head to an exact position without overshoot. The NIST traceability certification supports use in ISO-compliant and regulated inspection environments where calibration documentation is required.

Key Features

• 12-inch measuring range with 0.001-inch graduations
• Accuracy rated at 0.0015 inches
• Dial and counter display for fast, clear readings
• Fine adjustment mechanism for precise positioning
• Stainless steel construction for durability and corrosion resistance
• Ships NIST traceable calibrated, ready for documented quality processes

Compatibility

Designed as a general-purpose dial height gage for use with standard surface plates in tool room and inspection applications.

Installation Notes

Height gages are set up and operated by machinists or metrology technicians on a flat, clean surface plate. Handle the instrument carefully to avoid dropping or shocking the dial mechanism, as impact can affect calibration. Store in the provided case when not in use to protect the dial and scribing components. Re-verify calibration status after any significant impact or if the unit has been out of service for an extended period.
