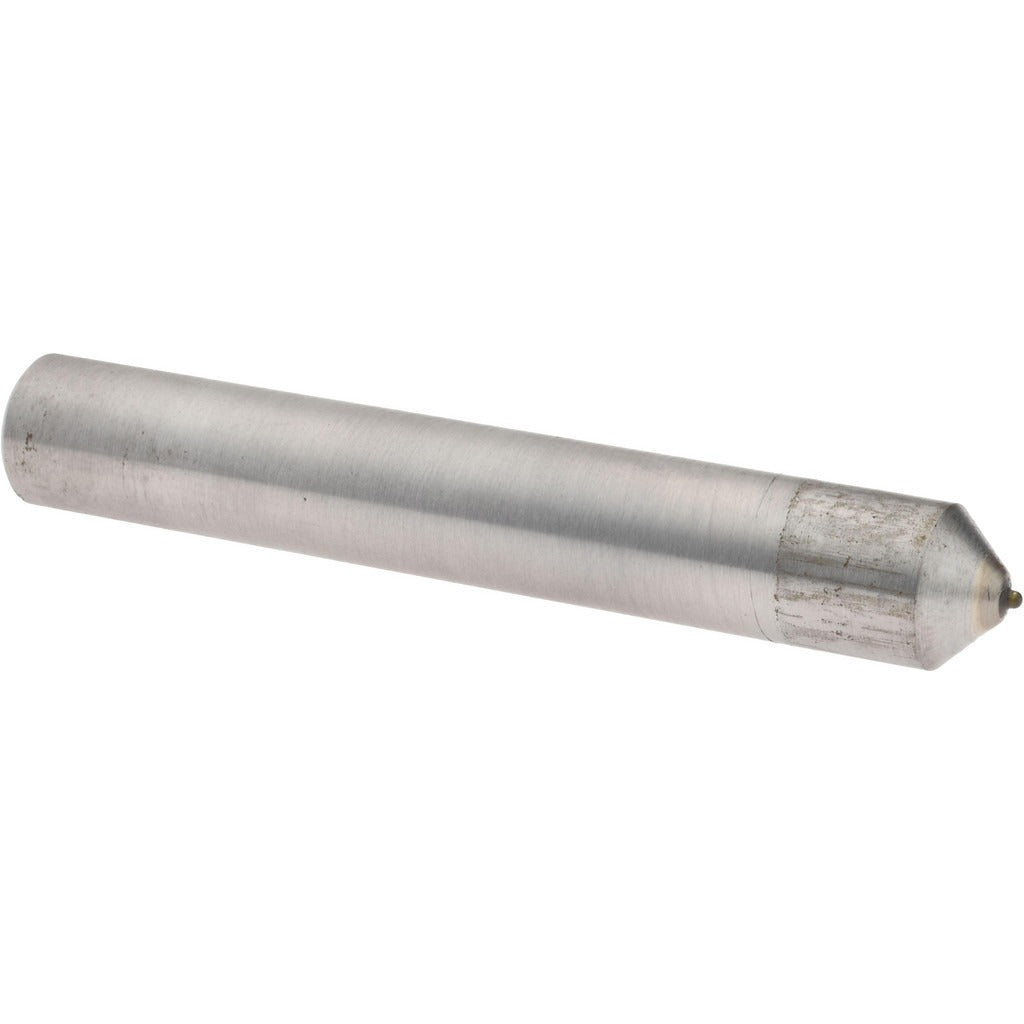

Spi ADT-95-262-2 Diamond Dresser 3/8 in Full Ball Radius

Product Description

The SPI ADT-95-262-2 is a single-point diamond dresser designed for dressing and truing grinding wheels in precision machining applications. It features a full ball radius point geometry with an included angle of 180 degrees, making it suitable for producing smooth, consistent wheel profiles. The 3/8-inch shank diameter and 2.5-inch shank length allow it to seat securely in standard dresser holders on surface grinders, cylindrical grinders, and tool and cutter grinders. The maximum radius capability is 0.0200 inches. At 0.25 pounds, it is a compact, purpose-built tool used by machinists and grinding technicians to maintain wheel geometry and surface finish quality.

This diamond dresser is used in machine shops and grinding operations where precise wheel conditioning is required. It suits both production and toolroom environments where grinding wheel face integrity must be maintained for consistent part geometry and surface finish. The single-point, full ball radius configuration is appropriate for general-purpose wheel dressing tasks on conventional abrasive wheels. It is installed in dresser holders mounted to grinder tables or wheel guards.

Key Features

• Full ball radius point type with 180-degree included angle for uniform wheel dressing
• Single-point diamond configuration for precise, controlled material removal from the wheel face
• 3/8-inch shank diameter fits standard dresser holders used on most grinding machines
• 2.5-inch shank length provides adequate reach and secure clamping in holder
• Maximum radius of 0.0200 inches suits fine-profile dressing applications
• Lightweight at 0.25 pounds for easy handling and tool change

Compatibility

Designed as an OEM-style replacement or direct-use single-point diamond dresser for standard grinding machine dresser holders accepting a 3/8-inch shank diameter.

Installation Notes

Diamond dressers are installed by qualified machinists or grinding machine operators. Before installing or adjusting the dresser, power down the grinder and allow the wheel to come to a complete stop. Secure the shank firmly in the dresser holder to the appropriate clamping torque specified by the holder manufacturer. When dressing, follow the grinding machine manufacturer's recommended traverse rate and depth-of-dress increments to avoid damaging the diamond point.
