Spi 615-6295 Contour Gage 7 in Overall 6 in Gage Width

Product Description

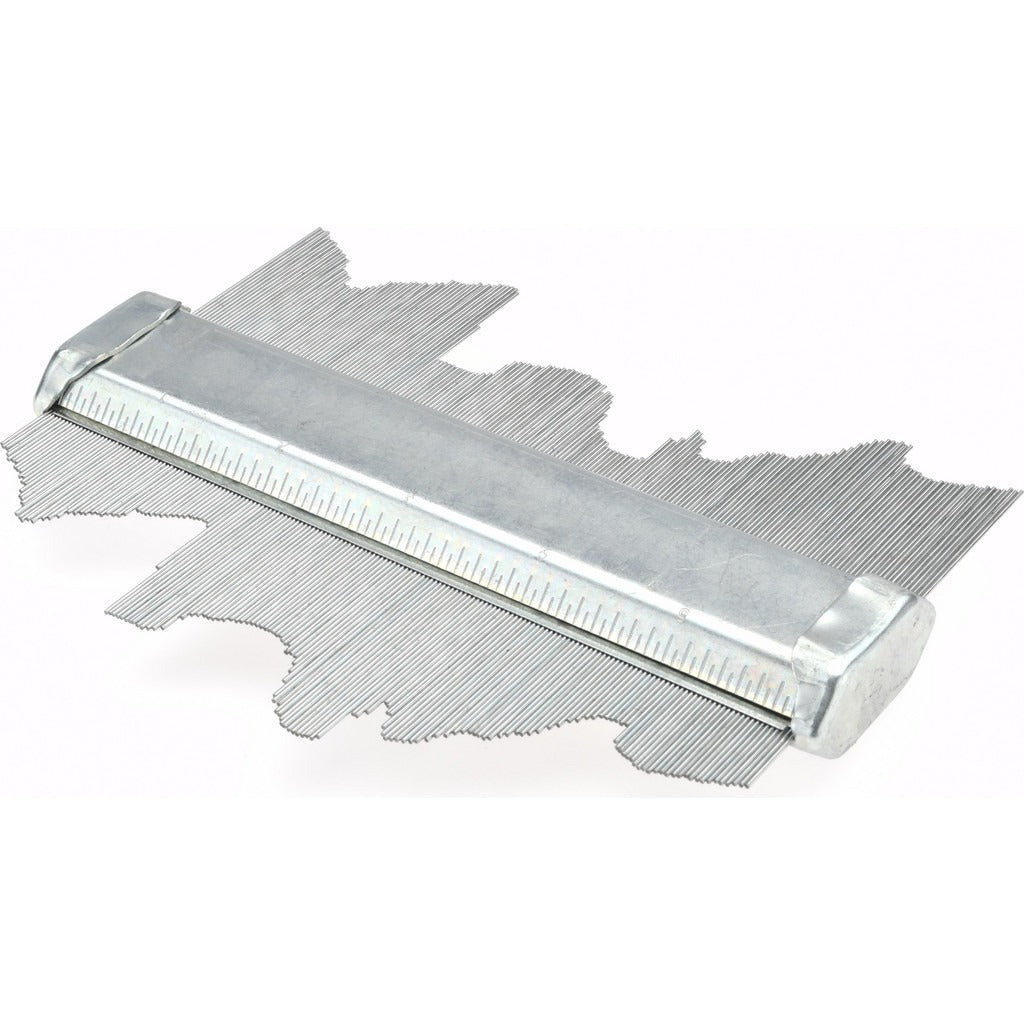

The SPI 615-6295 is a contour gage used to capture and transfer irregular profiles, curves, and shapes during layout, fabrication, and fitting work. The gage measures 7 inches in overall width with a 6-inch gage width and a 0.5-inch gage depth. It works by pressing tightly packed pins or blades against a contoured surface, locking in the exact profile so it can be transferred to a workpiece or used to verify a cut. This tool is commonly used by pipefitters, finish carpenters, tile setters, and sheet metal workers who need precise profile duplication without templates.

The SPI 615-6295 suits residential and commercial trade applications where irregular or curved surfaces must be matched accurately. Typical uses include fitting trim around pipe penetrations, matching existing profiles for replacement work, scribing tile or flooring around obstacles, and checking contoured cuts for accuracy. The 6-inch gage width covers most standard profile duplication tasks encountered in the field.

Key Features

• 6-inch gage width handles a broad range of profile capture tasks
• 0.5-inch gage depth provides adequate pin travel for typical contoured surfaces
• 7-inch overall width gives stable handling during use
• Transfers profiles directly to workpiece without sketching or measuring intermediate steps
• Compact form factor fits in a standard tool bag or pouch

Compatibility

Designed as a general-purpose contour profile gage suitable for layout and fitting tasks across HVAC, plumbing, carpentry, and tile trades.

Installation Notes

No installation is required for this tool. Press the gage firmly and evenly against the contoured surface to capture the profile, then lock the pins in place before transferring. Keep the gage perpendicular to the surface for an accurate reading. Clean the pins periodically to prevent debris from affecting profile accuracy.
