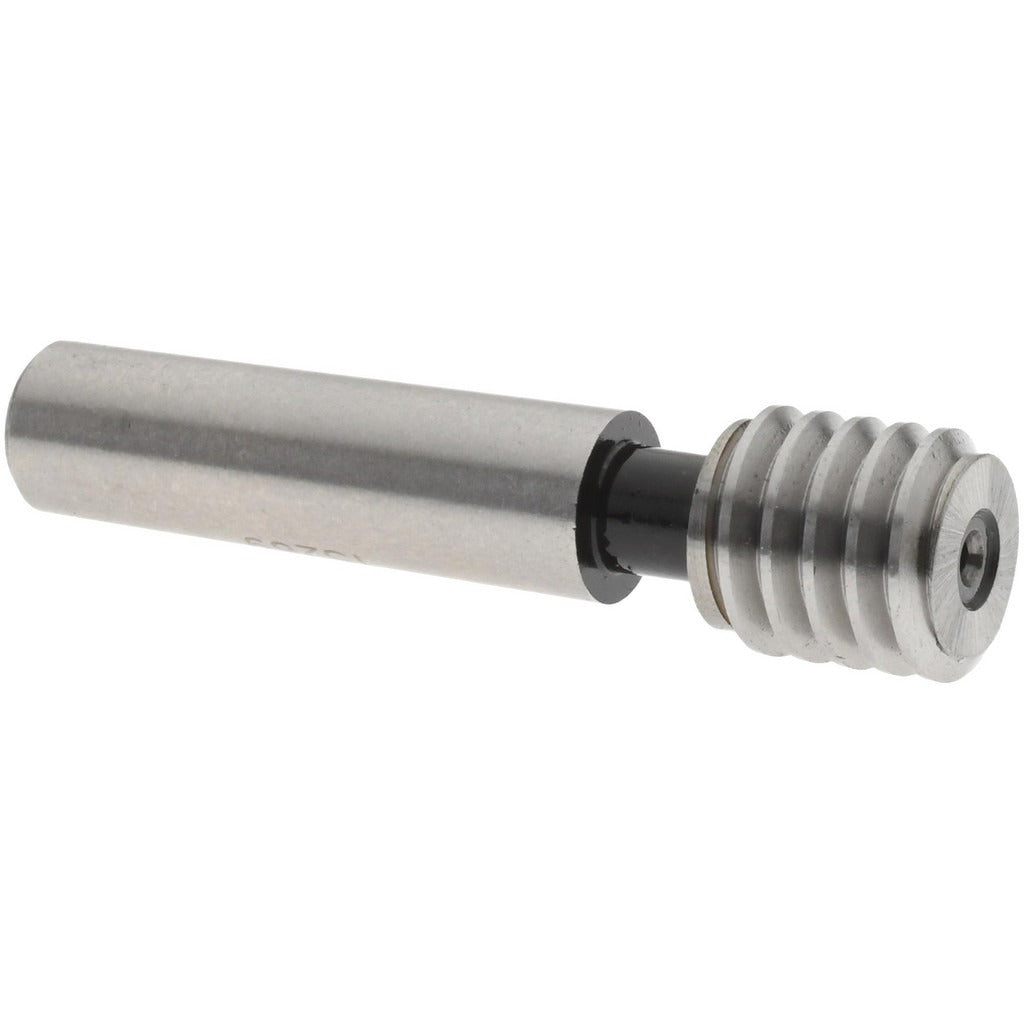

Spi 34-260-0 Plug Thread Gage 5/16-18 6H Single End No Go

Product Description

The SPI 34-260-0 is a single-end No Go plug thread gage designed to verify that internal threads do not exceed the maximum material condition for a 5/16-18 thread form. Built to 6H classification tolerances and conforming to ANSI standards, this gage is used by machinists, quality technicians, and inspectors to reject out-of-tolerance threaded holes before parts move to assembly. The gage is manufactured from steel for durability and dimensional stability under repeated use. A Size 1 handle is required for operation but is not included with this gage and must be sourced separately.

This No Go plug gage is suited for incoming inspection, in-process quality control, and final inspection of 5/16-18 UNC internally threaded components in manufacturing, toolroom, and metrology environments. It is appropriate for use in precision machining shops, aerospace component inspection, general industrial fabrication, and any application requiring documented thread conformance to ANSI standards. The included NIST traceability certification supports quality management systems that require documented measurement traceability.

Key Features

• No Go single-end design checks maximum material condition of 5/16-18 internal threads
• 6H classification tolerance per ANSI and NIST standards
• Steel construction provides wear resistance and dimensional stability
• NIST traceability certification included for quality system compliance
• Compatible with standard Size 1 plug gage handles (handle not included)
• Single-end configuration for dedicated No Go inspection workflow

Compatibility

Designed for use with Size 1 plug gage handles. Compatible with 5/16-18 UNC internally threaded workpieces inspected to 6H tolerance class per ANSI standards.

Installation Notes

Installation of this gage requires a separately purchased Size 1 handle. A licensed or trained quality technician or machinist should install the gage member into the handle following the handle manufacturer instructions before use. Do not force the gage into a threaded hole; if the No Go member enters the thread, the part is out of tolerance and should be rejected. Store the gage in a protective case away from impact and temperature extremes to maintain calibration integrity.
