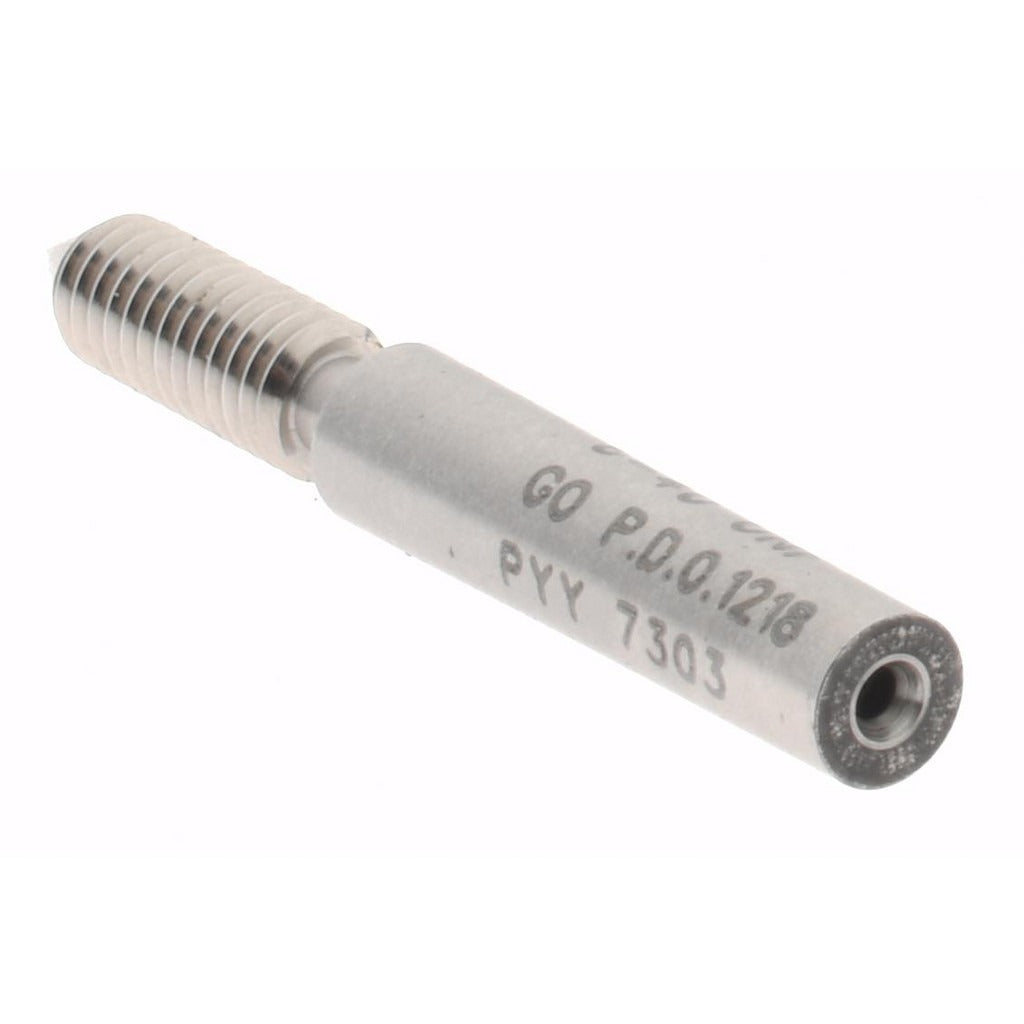

Spi 34-229-5 Plug Thread Gage 6-40 6H Single End Go

Product Description

The SPI 34-229-5 is a single-end Go plug thread gage machined from steel and designed to verify internal thread conformance to a 6-40 UNC thread form at 6H tolerance class. It checks that a tapped hole accepts a mating fastener within the specified tolerance limits. When the Go member passes through the threaded feature without forced engagement, the thread is confirmed to be within the minimum material condition. This gage is used by machinists, quality inspectors, and toolroom technicians performing in-process or final inspection on precision threaded components. Traceability documentation to NIST standards is included, supporting calibration records and quality system requirements.

This gage is suited for inspection of fine-pitch internal threads in small-diameter features, typical of instrumentation, electronics, and precision mechanical assemblies where a number 6-40 threaded fastener is specified. The single-end Go configuration fits a Size 00 handle, which is sold separately. It is used at inspection stations, on the shop floor, or in toolrooms wherever thread conformance to ANSI and NIST-traceable standards must be documented.

Key Features

• Go member verifies internal threads are within the maximum material limit for a 6-40 thread form
• 6H tolerance class meets ANSI standard requirements for general-purpose internal threads
• Steel construction provides durability and dimensional stability under repeated use
• NIST traceability certification included for quality system and calibration documentation
• Single-end design accepts a Size 00 handle (handle not included)
• Conforms to ANSI and NIST standards for plug thread gaging

Compatibility

Designed for use with a Size 00 thread gage handle, sold separately. Suitable for inspection of 6-40 internal threads conforming to ANSI tolerance class 6H.

Installation Notes

Thread plug gages are installed and used by quality technicians and machinists trained in thread inspection procedures. Before use, ensure the gage and workpiece threads are clean and free of chips or debris to prevent false readings or gage damage. Apply only hand force when inserting the Go member; forced engagement can damage the gage or the part. Store the gage in a protected case away from other tools to preserve calibration.
