Spi 34-202-2 Plug Thread Gage 2-56 2B Single End Go

Product Description

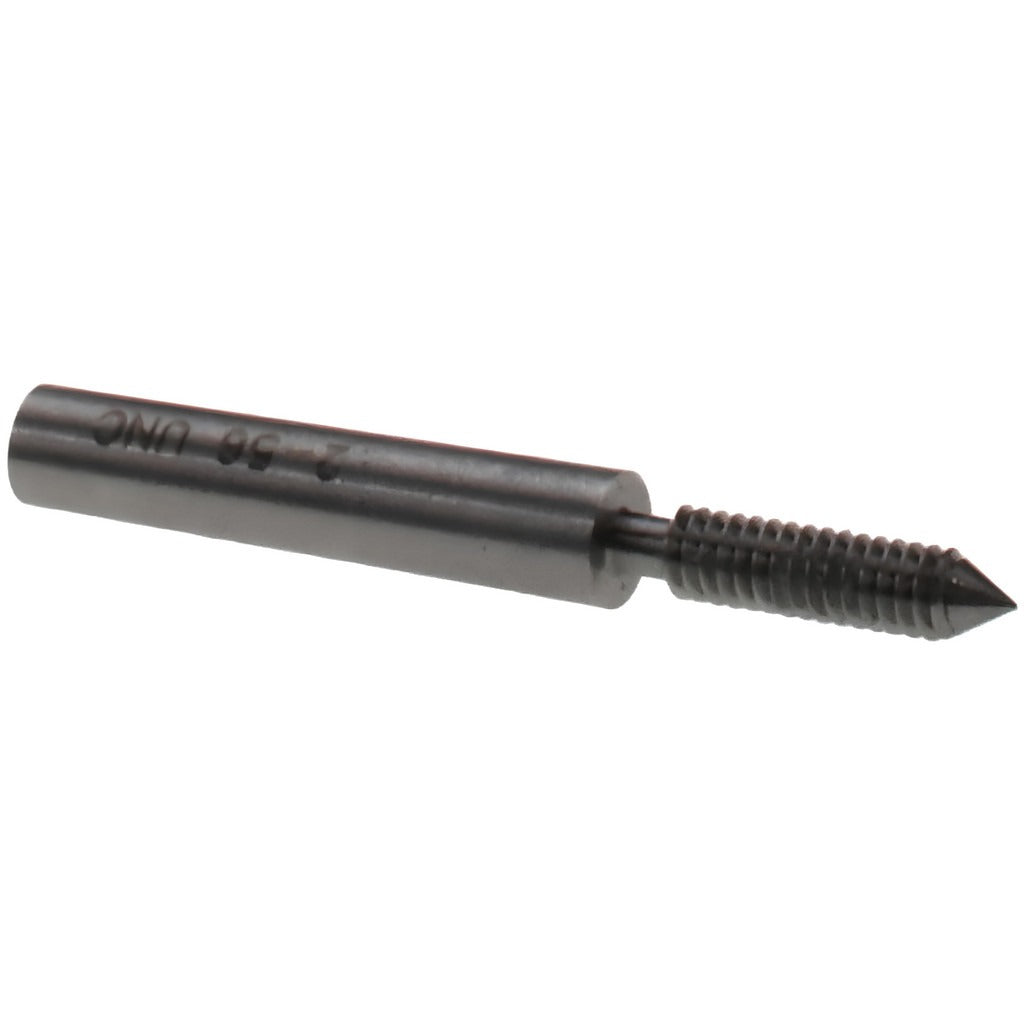

The SPI 34-202-2 is a single-end Go plug thread gage designed to verify the minimum material condition of 2-56 UNC internally threaded features. Built to ANSI standards and traceable to NIST, this gage confirms that a threaded hole or insert will accept a mating fastener at the correct tolerance boundary. The gage is machined from steel for durability and dimensional stability under repeated use. It is sized for a Class 2B thread fit, which covers the most common commercial and industrial tolerance class for inch-series internal threads. A size 0 handle is required for use but is sold separately.

This gage is used in precision machining, assembly inspection, and quality control environments wherever No. 2-56 threaded components must be verified before assembly. Typical applications include inspection of tapped holes in instrument housings, electronic enclosures, small mechanical assemblies, and fastener-retained covers. It is appropriate for both production floor inspection and tool room verification. The single-end Go design is used specifically to confirm minimum acceptance criteria, and is frequently paired with a No-Go gage to complete a full 2B tolerance check.

Key Features

• Go member verifies minimum material condition for 2-56 Class 2B internal threads
• Steel construction provides wear resistance for repeated inspection cycles
• NIST-traceable calibration supports quality system documentation and audits
• Meets ANSI standards for plug thread gage geometry and tolerance
• Single-end configuration for dedicated Go inspection without risk of confusion with No-Go end
• Compatible with size 0 handles, available separately

Compatibility

Designed for inspection of 2-56 UNC Class 2B internally threaded features. Accepts a size 0 thread gage handle, which is not included.

Installation Notes
