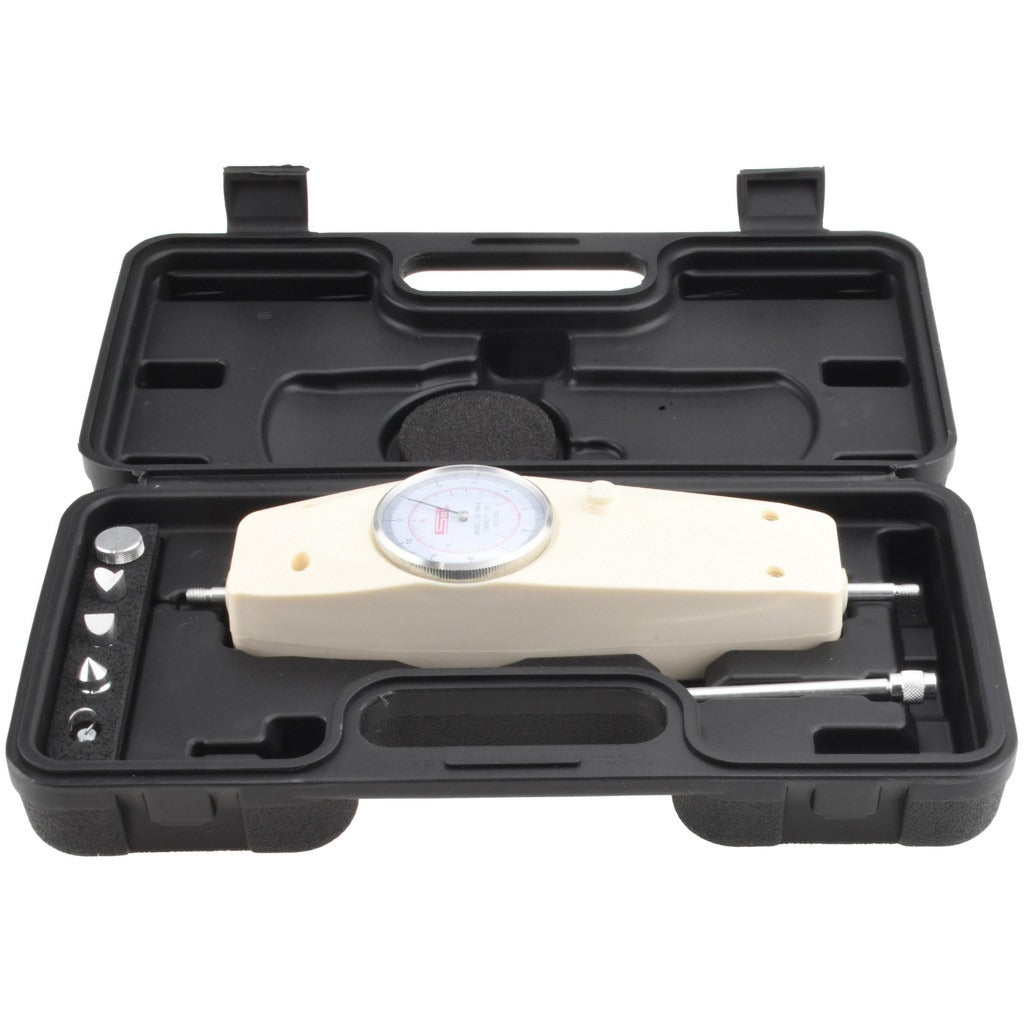

Spi 30-198-6 Tension Compression Force Gauge

Product Description

The SPI 30-198-6 is a mechanical tension and compression force gauge designed for measuring push and pull forces in pounds. The unit features a plastic housing and delivers a measurement accuracy of 1.0% of full scale. Readings are displayed on an analog dial, making it well suited for field use, incoming inspection, and production-floor force verification. The gauge requires no power source and is ready to use without calibration setup, making it a practical tool for technicians and quality control professionals across mechanical and industrial trades.

This gauge is used in applications where precise tension or compression force measurement is required without electronic instrumentation. Typical scenarios include spring-force testing, cable pull verification, assembly line torque and force checks, and field service inspections. The pound-unit scale makes it directly compatible with standard Imperial measurement workflows common in HVAC, mechanical, and light manufacturing environments.

Key Features

• Measures both tension and compression forces in a single instrument
• 1.0% accuracy for reliable force verification
• Plastic housing provides lightweight, durable construction
• Analog dial display requires no batteries or power source
• Pound-unit scale for direct Imperial measurement readout
• Compact form factor suited for bench use and field service

Compatibility

Designed as a general-purpose mechanical force gauge for tension and compression measurement applications requiring pound-unit readout and analog display.

Installation Notes

This gauge is a handheld measurement instrument and does not require permanent installation. Before use, ensure the gauge is zeroed according to the manufacturer procedure with no load applied. Apply force along the gauge axis only to avoid side-loading, which can affect accuracy and damage internal components. Technicians should handle the unit carefully to protect the analog mechanism from shock and impact.
