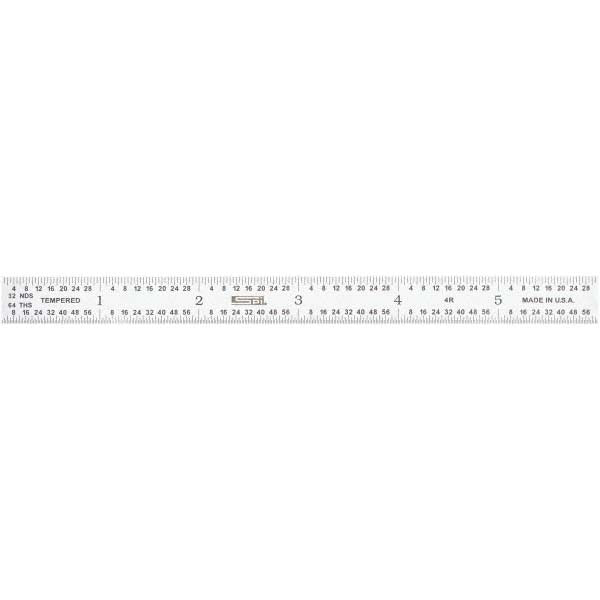

Spi 30-153-1 Flexible Steel Rule 6 Inch 4R

Product Description

The SPI 30-153-1 is a flexible satin chrome-plated steel rule with a 6-inch overall length and 4R graduation style. It is designed for precise linear measurement in trade, fabrication, and mechanical service applications. The four-sided graduation pattern covers 1/16, 1/32, 1/64, and 1/8 inch increments, giving technicians multiple reference scales on a single blade. At 0.015 inches thick and 0.5 inches wide, the blade flexes to conform to curved or contoured surfaces without sacrificing readability. Machinists, HVAC technicians, pipefitters, and plumbers reach for this type of rule when checking fitment, layout, or component dimensions on the bench or in the field.

This rule is suited for layout and inspection tasks in residential and commercial mechanical trades. The flexible blade is particularly useful when measuring across curved pipe flanges, duct edges, motor shafts, or other non-flat surfaces. The satin chrome finish reduces glare under shop lighting and improves graduation contrast, making it practical in low-light service environments. It ships individually and is compact enough for a tool pouch or apron pocket.

Key Features

• Flexible blade conforms to curved and contoured surfaces
• 4R graduation style with four scales: 1/16, 1/32, 1/64, and 1/8 inch
• Satin chrome finish reduces glare and improves scale readability
• Thin 0.015-inch blade profile fits into tight clearances
• Compact 6-inch length suitable for close-quarter measurement tasks
• No hook, no magnet — straightforward blade-only design

Compatibility

General-purpose flexible steel rule suited for mechanical, HVAC, plumbing, and fabrication measurement applications requiring 4R graduation in a 6-inch format.

Installation Notes

No installation is required for this measuring tool. Handle the blade carefully to avoid kinking, which can permanently distort the graduation markings. Keep the blade clean and dry to prevent corrosion at the graduation lines. Store flat or coiled loosely to maintain flexibility and accuracy.
