Spi 19-583-4 Class Zz Minus Plug Pin Gage 0.583 in

Product Description

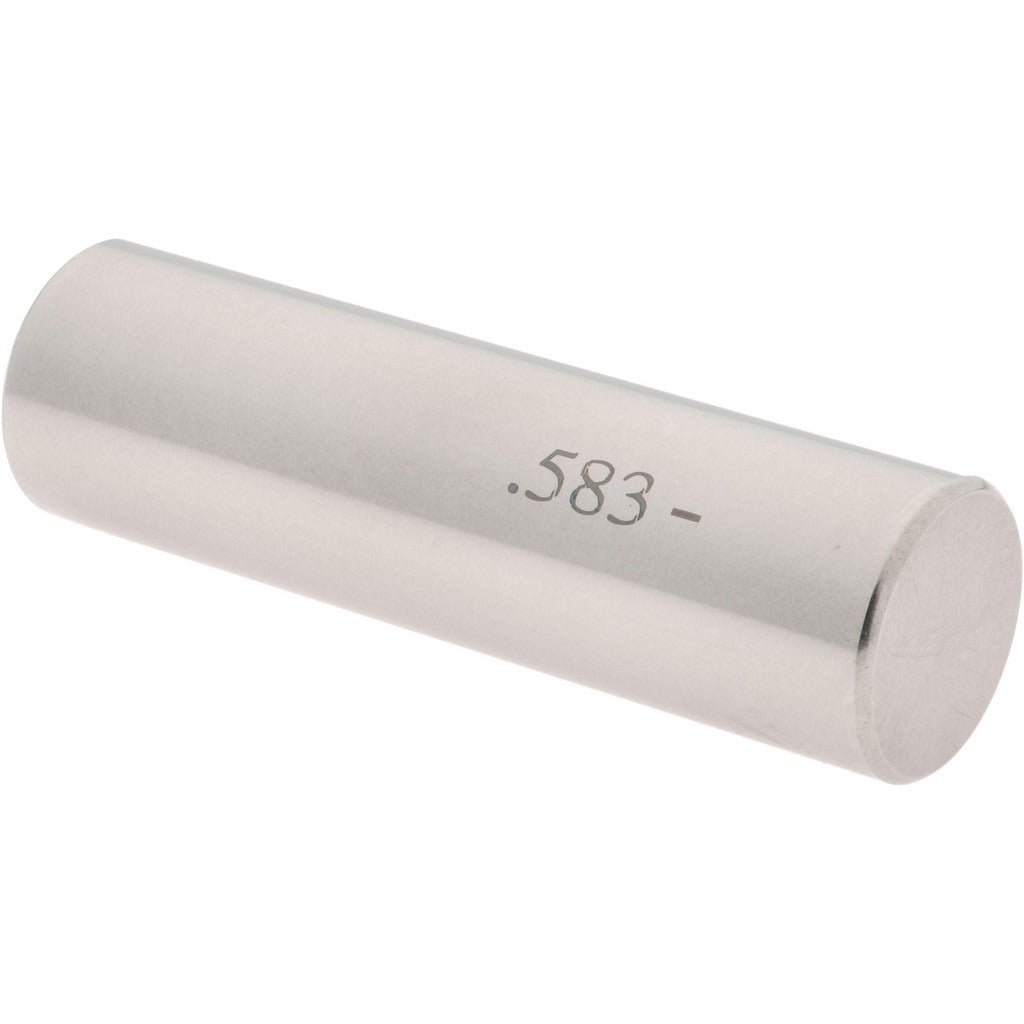

The SPI 19-583-4 is a Class ZZ minus plug pin gage used to verify bore and hole diameters in precision machining and inspection applications. Built to Class ZZ tolerance standards, this go-style gage checks whether a hole is within specification by confirming minimum acceptable size. The gage measures 0.583 inches in diameter with a tolerance of 0.0002 inches, making it suitable for quality control work where dimensional accuracy is critical. Constructed from steel, it is durable enough for repeated use in shop-floor and inspection-room environments. Machinists, quality technicians, and tool-and-die professionals rely on plug pin gages like this one for fast, reliable dimensional verification.

This gage is designed for use in manufacturing, machining, and metrology environments where hole diameter conformance must be confirmed to tight tolerances. It is appropriate for both production-line inspection and bench-level quality checks. The 0.583-inch diameter and Class ZZ minus designation make it a practical tool for verifying holes drilled, reamed, or bored to that nominal size. It is typically used in conjunction with a matching go/no-go gage set or as a standalone minus plug for confirming minimum hole size acceptance.

Key Features

• Class ZZ tolerance grade for standard inspection and quality control applications
• Minus plug configuration checks minimum acceptable hole diameter
• 0.583-inch nominal diameter with 0.0002-inch tolerance
• Steel construction for durability and dimensional stability under repeated use
• Compact and lightweight at 0.2 pounds for easy single-hand operation

Compatibility

Designed as an OEM-style plug pin gage for use in standard bore and hole inspection applications requiring a 0.583-inch nominal diameter at Class ZZ minus tolerance.

Installation Notes

Plug pin gages are handled and used by machinists and quality control technicians — no installation in the traditional sense is required. Before use, ensure the gage and workpiece surfaces are clean and free of burrs, chips, or debris that could affect measurement accuracy. Do not force the gage into an undersized hole, as this can damage both the gage and the workpiece. Store the gage in a protective case or sleeve and calibrate periodically according to your facility's metrology standards.
