Spi 19-575-0 Class Zz Minus Plug Pin Gage 0.575 in

Product Description

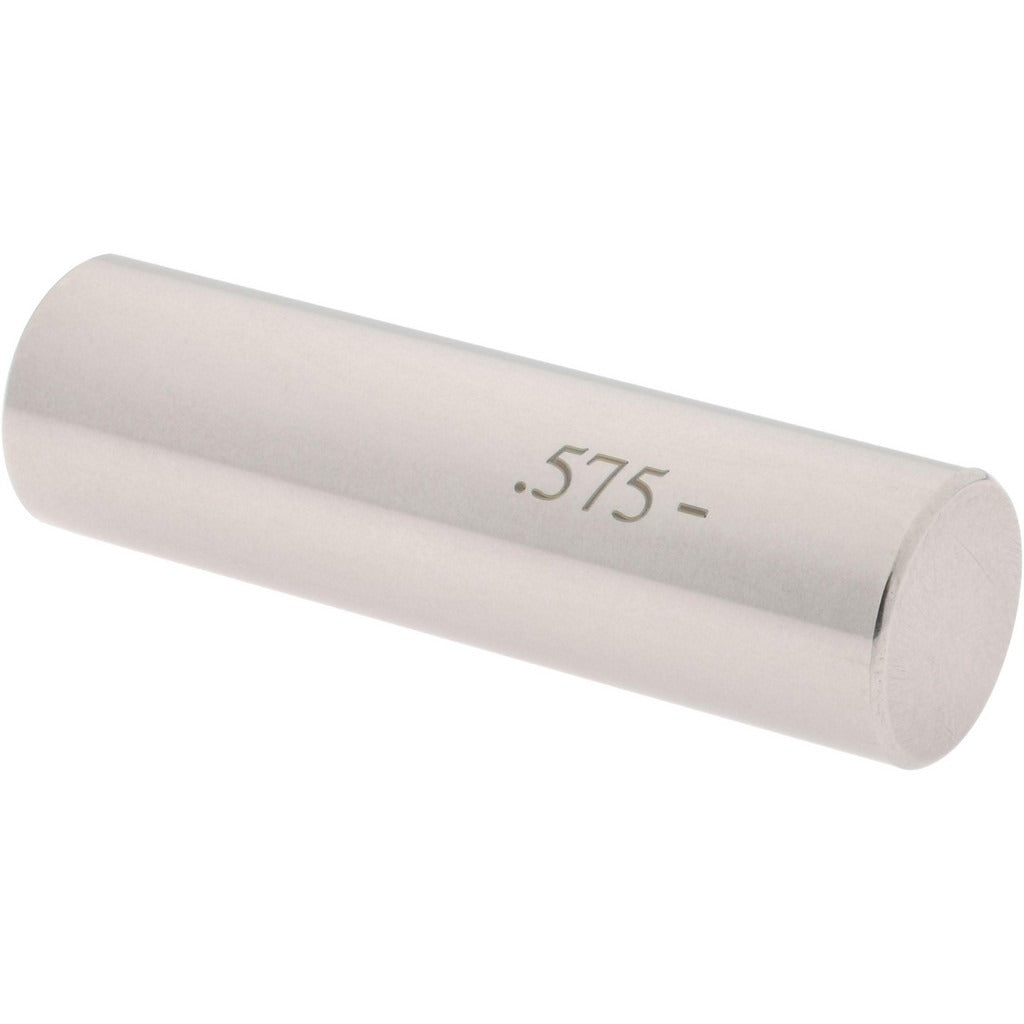

The SPI 19-575-0 is a Class ZZ minus plug pin gage with a nominal diameter of 0.575 inches, manufactured from steel. It is used to verify bore and hole dimensions by checking whether a workpiece feature falls within acceptable size limits. Class ZZ designates a commercial-grade tolerance level commonly applied in general inspection and production checking environments. The minus designation means the gage is ground to the lower tolerance boundary, making it appropriate for go/no-go inspection workflows where the gage must pass through an acceptable hole. Machinists, tool and die technicians, and quality control inspectors are the primary users of this type of gage.

This plug pin gage is suited for dimensional inspection of drilled, reamed, or bored holes in manufacturing, repair shop, and production floor environments. It is used across metalworking, mechanical assembly, and fabrication settings wherever a 0.575-inch nominal hole diameter must be verified. The gage is handled by inspection personnel performing in-process or final acceptance checks on machined components. Its compact size makes it practical for bench inspection and in-line quality checks alike.

Key Features

• Class ZZ tolerance classification for general-purpose commercial inspection use
• Minus tolerance ground to the lower boundary for reliable go/no-go verification
• 0.575-inch nominal diameter for direct bore and hole inspection
• Steel construction for durability and dimensional stability during repeated use
• Tolerance of 0.0002 inches ensures consistent measurement accuracy

Compatibility

Designed as a standard Class ZZ minus plug pin gage for use in any inspection application requiring verification of a 0.575-inch nominal bore or hole diameter.

Installation Notes

Plug pin gages are handled and used by machinists, quality inspectors, and tool room technicians. Store the gage in a protective case when not in use to prevent surface damage that could affect dimensional accuracy. Clean the gage and the workpiece bore before use to remove chips, coolant, or debris that could cause false readings. Never force the gage through a hole, as this can damage both the gage and the workpiece surface.
