Spi 19-528-9 Class Zz Minus Plug Pin Gage 0.528 in

Product Description

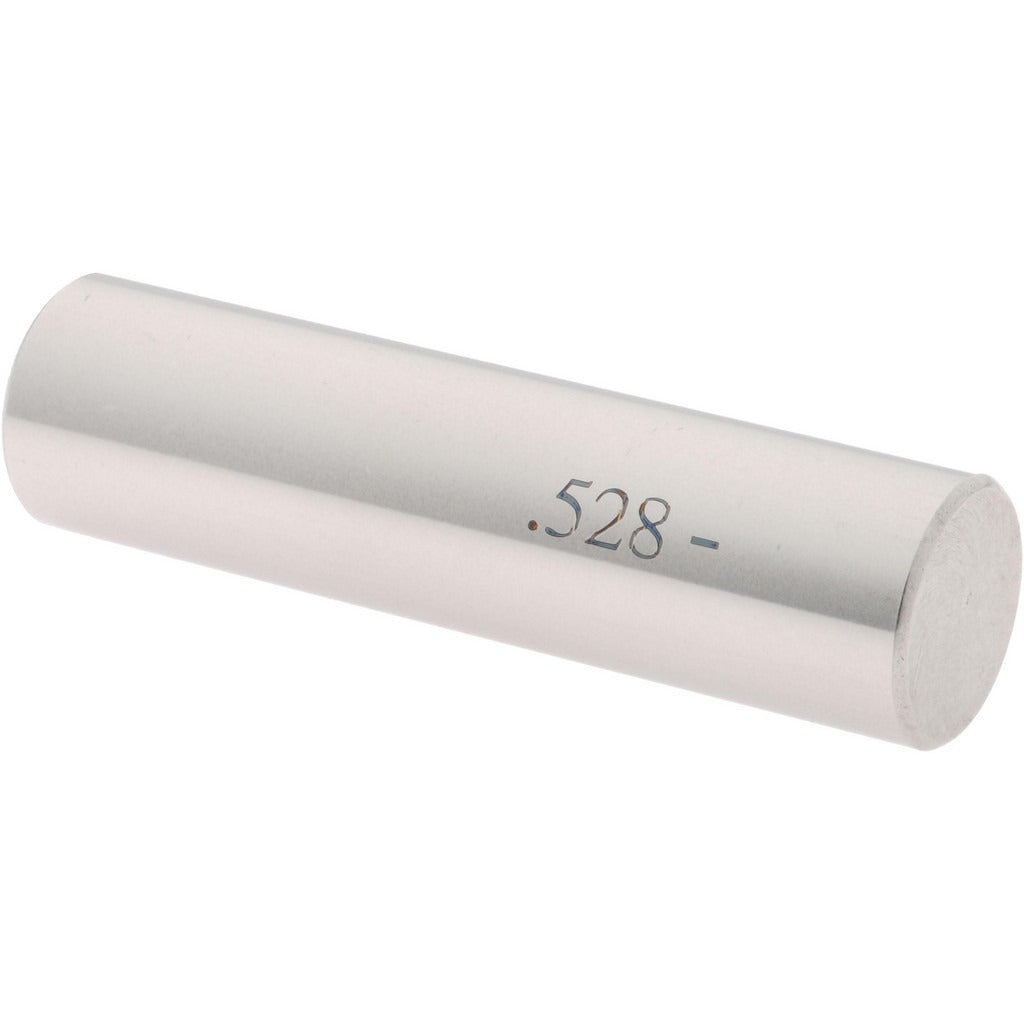

The SPI 19-528-9 is a Class ZZ minus plug pin gage machined from steel and used to verify bore and hole dimensions in precision measurement applications. It checks whether a feature meets minimum size requirements, functioning as a go/no-go reference tool on the shop floor or in an inspection environment. The gage measures 0.528 inches in diameter with a tolerance of 0.0002 inches, providing the accuracy expected for Class ZZ inspection work. At 0.2 pounds, it is lightweight enough for continuous hand use during production inspection cycles.

Class ZZ plug gages are standard tools in manufacturing quality control. This minus gage is suited for inspecting machined bores, drilled holes, and reamed features where dimensional conformance must be verified before assembly. Typical users include machinists, quality technicians, and tool-room personnel working in job shops, production facilities, or maintenance environments. The steel construction holds up to repeated use in standard shop conditions.

Key Features

• Class ZZ tolerance grade for general-purpose inspection work
• Minus configuration checks minimum material condition of the feature
• 0.528 inch nominal diameter for direct bore verification
• 0.0002 inch tolerance for consistent, repeatable measurements
• Steel construction resists wear during routine inspection use
• Lightweight at 0.2 pounds for extended hand use

Compatibility

Designed as a standard Class ZZ minus plug pin gage for use in general-purpose bore inspection applications where a 0.528 inch nominal diameter reference is required.

Installation Notes
