Spi 19-104-9 Class Zz Minus Plug Pin Gage 0.104 in

Product Description

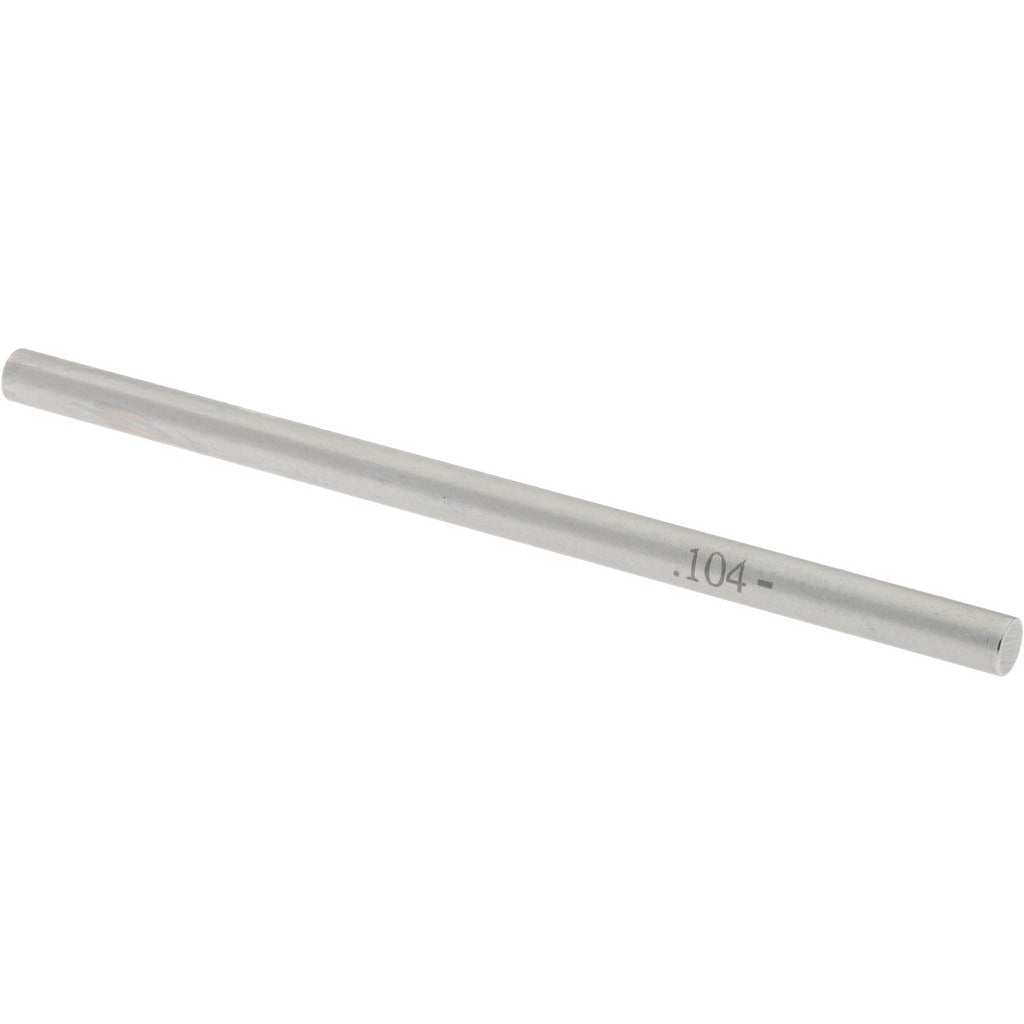

The SPI 19-104-9 is a Class ZZ minus plug pin gage machined from steel for use in go/no-go dimensional inspection workflows. It measures 0.104 inches in diameter with a tolerance of 0.0002 inches, placing it in the ZZ classification for general-purpose inspection and quality control. This gage is used to verify hole sizes, bore diameters, and feature acceptance in machined or fabricated parts. Machinists, quality technicians, and toolroom professionals use Class ZZ pin gages as a cost-effective solution for production-floor inspection where higher gage classes are not required.

Class ZZ minus plug gages are suited for incoming inspection, in-process checks, and final inspection of drilled, reamed, or punched features. The minus designation means the gage is manufactured to the lower end of the tolerance band, making it appropriate for applications where the gage must pass cleanly through an acceptable hole. This gage is intended for use in shop environments where repeatability and material hardness are priorities over laboratory-grade tolerances.

Key Features

• 0.104 inch diameter for precise hole and bore verification
• Class ZZ tolerance class suited for general production inspection
• Minus designation places the gage at the lower end of the tolerance band
• Steel construction for durability and wear resistance in shop use
• 0.0002 inch tolerance for consistent go/no-go inspection results

Compatibility

Designed as a general-purpose Class ZZ minus plug pin gage for use in standard go/no-go inspection setups where a 0.104 inch nominal diameter is required.

Installation Notes

Pin gages should be handled with clean, dry hands or lint-free gloves to prevent corrosion from skin contact. Store gages in the provided case or a dry, temperature-stable environment when not in use. Do not force a pin gage into a feature; if resistance is encountered, remove the gage and inspect the workpiece. Calibration should be verified periodically against a certified master to maintain inspection integrity.
