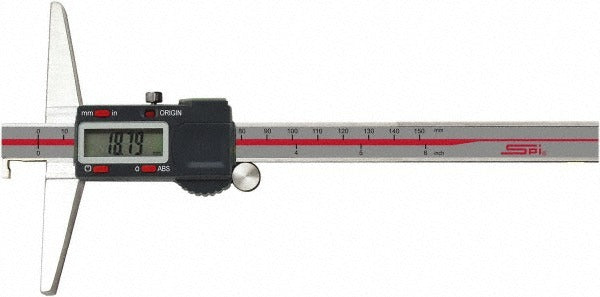

Spi 17-613-1 Electronic Depth Gage 0-12 Inches

Product Description

The SPI 17-613-1 is an electronic depth gage with a measuring range of 0 to 12 inches, designed for precision dimensional measurement in machining, fabrication, and metrology applications. Built from stainless steel, it delivers a resolution of 0.0005 inches and an accuracy of 0.0015 inches, making it suitable for tight-tolerance work. The 6-inch base provides stable seating across a variety of bore and step surfaces. SPC and USB data output capability allows direct integration with data collection systems for quality control workflows. A single CR2032 battery is included. This gage is installed and used by machinists, tool-and-die technicians, and quality control professionals.

The SPI 17-613-1 is suited for shop-floor and inspection-room use in both production and maintenance environments. Its IP54 water resistance rating makes it appropriate for use in environments with light coolant or fluid exposure, common in machining centers and job shops. The included hook extends measurement capability for deeper features. SPC data output supports integration with statistical process control software, making it a practical choice for facilities running documented quality programs.

Key Features

• 0 to 12 inch measuring range with 0.0005 inch resolution
• Accuracy of 0.0015 inches for tight-tolerance inspection
• 6-inch base length for stable contact across wide surfaces
• SPC and USB data output for quality control integration
• IP54 water resistance rating for use near coolants and fluids
• Stainless steel construction for durability in shop environments
• Includes hook, CR2032 battery, and data output capability out of the box

Compatibility

Designed as a precision hand-tool replacement or addition for electronic depth measurement applications requiring SPC-compatible digital output in inch-based measurement systems.

Installation Notes

Electronic depth gages require no installation in the traditional sense but should be zeroed against a flat reference surface before use. Keep the base and blade clean and free of burrs or debris to maintain measurement accuracy. Avoid exposing the unit to direct fluid immersion beyond its IP54 rating. Battery replacement uses a standard CR2032 cell; refer to the manufacturer documentation for proper replacement procedure to avoid damaging the electronics.
