Spi 13-882-6 Flexible Steel Rule 6 Inch 5R

Product Description

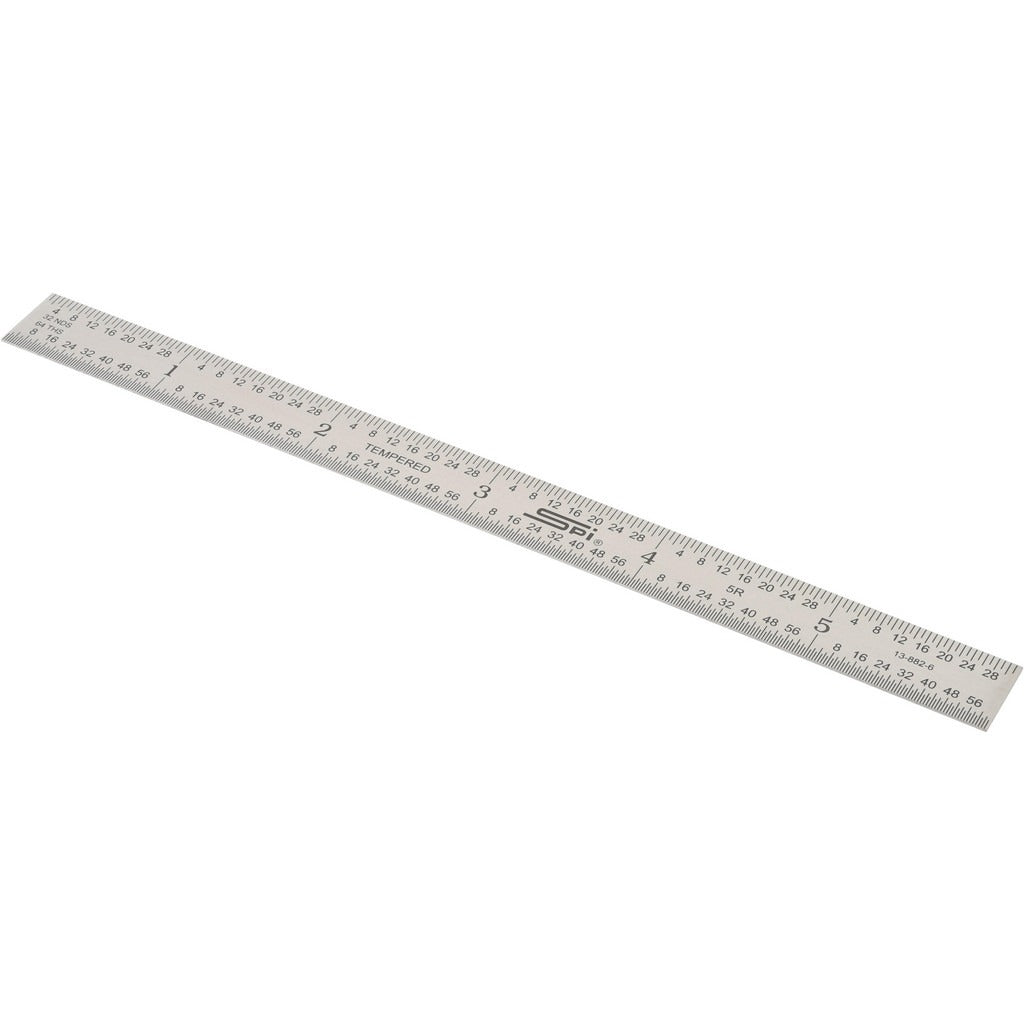

The SPI 13-882-6 is a flexible stainless steel rule designed for precision layout and measurement tasks in trade and industrial settings. Measuring 6 inches in overall length and 1/2 inch in overall width, this rule features a 5R graduation style with three scales: 1/100, 1/32, and 1/64 inch. The flexible construction allows it to conform to curved or irregular surfaces where a rigid rule would lose contact. At 0.0200 inches thick, it is slim enough to slide into tight spaces while still providing clear, readable graduations on a polished silver finish. Machinists, pipefitters, and HVAC technicians keep this type of rule on hand for close-tolerance layout work.

This rule is suited for bench work, fabrication, and field service where accurate short-length measurements are required. The horizontal scale orientation and polished finish improve readability under shop lighting. The 5R graduation style provides four edges of measurement in a single compact tool, making it practical for tasks that require switching between fractional and decimal inch readings without changing tools. No hook is included, and the rule is non-magnetic.

Key Features

• Flexible stainless steel construction conforms to curved surfaces
• 5R graduation style with 1/100, 1/32, and 1/64 inch scales
• Polished silver finish for high-contrast readability
• Slim 0.0200 inch thickness fits into tight measurement spaces
• 6 inch overall length in a compact 1/2 inch wide profile
• Non-magnetic with no hook for straightforward layout use

Compatibility

Designed as a general-purpose flexible steel rule suitable for precision measurement and layout applications across HVAC, plumbing, electrical, and mechanical trades.

Installation Notes

No installation is required for this hand tool. Store flat or in a protective sleeve to prevent permanent bending of the flexible blade. Clean with a dry cloth to maintain the polished finish and graduation legibility. Avoid using the rule as a cutting guide with sharp blades, as this can damage the graduated edge.
