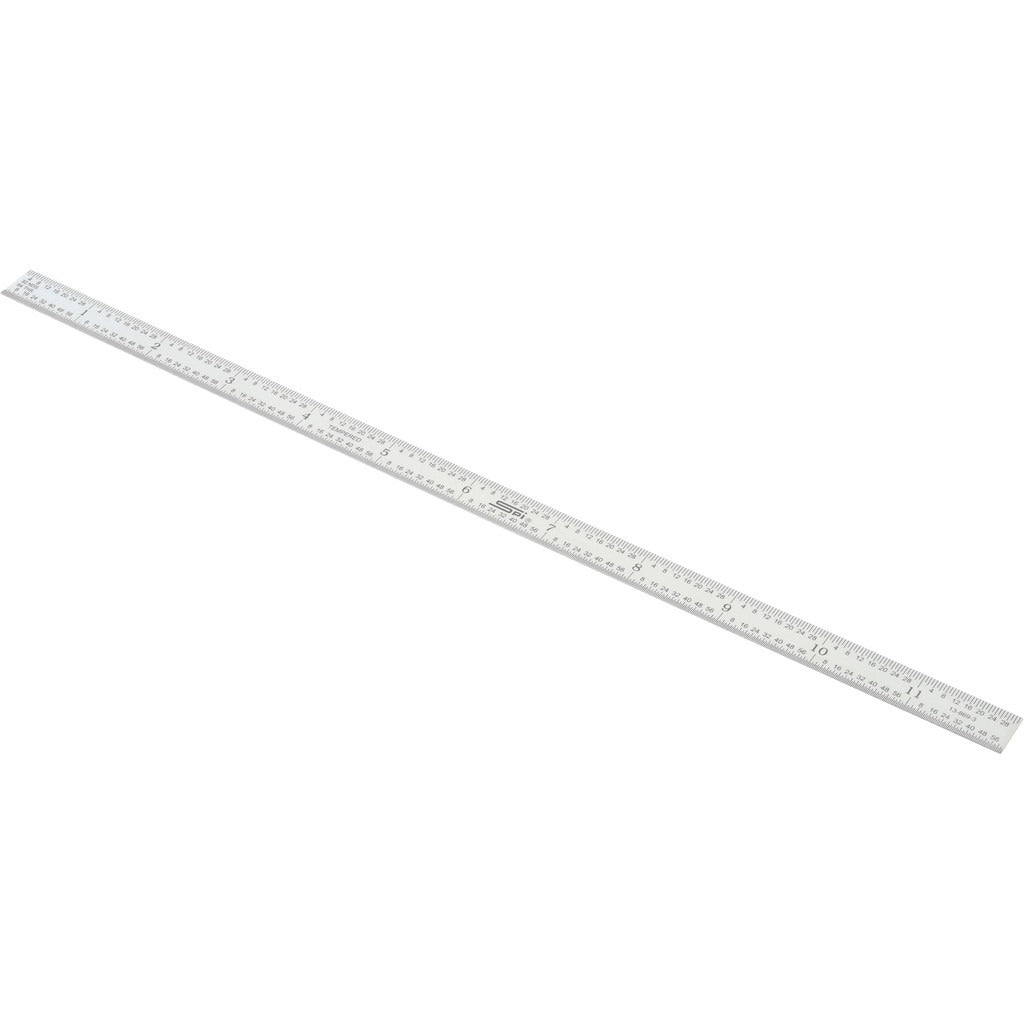

Spi 13-869-3 Flexible Steel Rule 12 Inch

Product Description

The SPI 13-869-3 is a flexible steel rule designed for precision linear measurement in trade and industrial environments. Measuring 12 inches in overall length and 0.5 inches in overall width, this rule features a satin chrome-plated finish for glare reduction and corrosion resistance. Graduations are marked in both English and metric, with English increments of 1/2 inch, 1/32 inch, and 1/64 inch, giving technicians the resolution needed for close-tolerance layout and inspection work. The flexible construction allows the rule to conform to curved or irregular surfaces where a rigid rule would not seat properly.

This rule is suited for use in mechanical, HVAC, plumbing, and electrical trade applications where accurate field measurement and layout are required. The horizontal scale orientation and dual English-metric graduation make it practical for both domestic and internationally specified work. At 0.020 inches thick, it is thin enough to slide into tight clearances for direct contact measurement. Licensed tradespeople, machinists, and service technicians will find this rule appropriate for everyday shop and field use.

Key Features

• Flexible construction conforms to curved and irregular surfaces
• Dual graduation system: English (1/2, 1/32, 1/64 inch) and metric
• Satin chrome-plated finish reduces glare and resists corrosion
• Thin profile at 0.020 inches allows measurement in confined spaces
• Horizontal scale orientation for straightforward direct reading
• No hook, no magnetic attachment — straightforward layout tool

Compatibility

Designed as a general-purpose flexible steel rule suitable for use across mechanical, HVAC, plumbing, and electrical trade applications requiring 12-inch linear measurement capability.

Installation Notes

No installation is required for this hand tool. Store flat to preserve the rule's calibrated straightness and protect the graduated markings from wear. Clean with a dry cloth after use in oily or dusty environments to maintain legibility. Avoid bending the rule beyond its intended flexible range to prevent permanent deformation of the scale markings.
