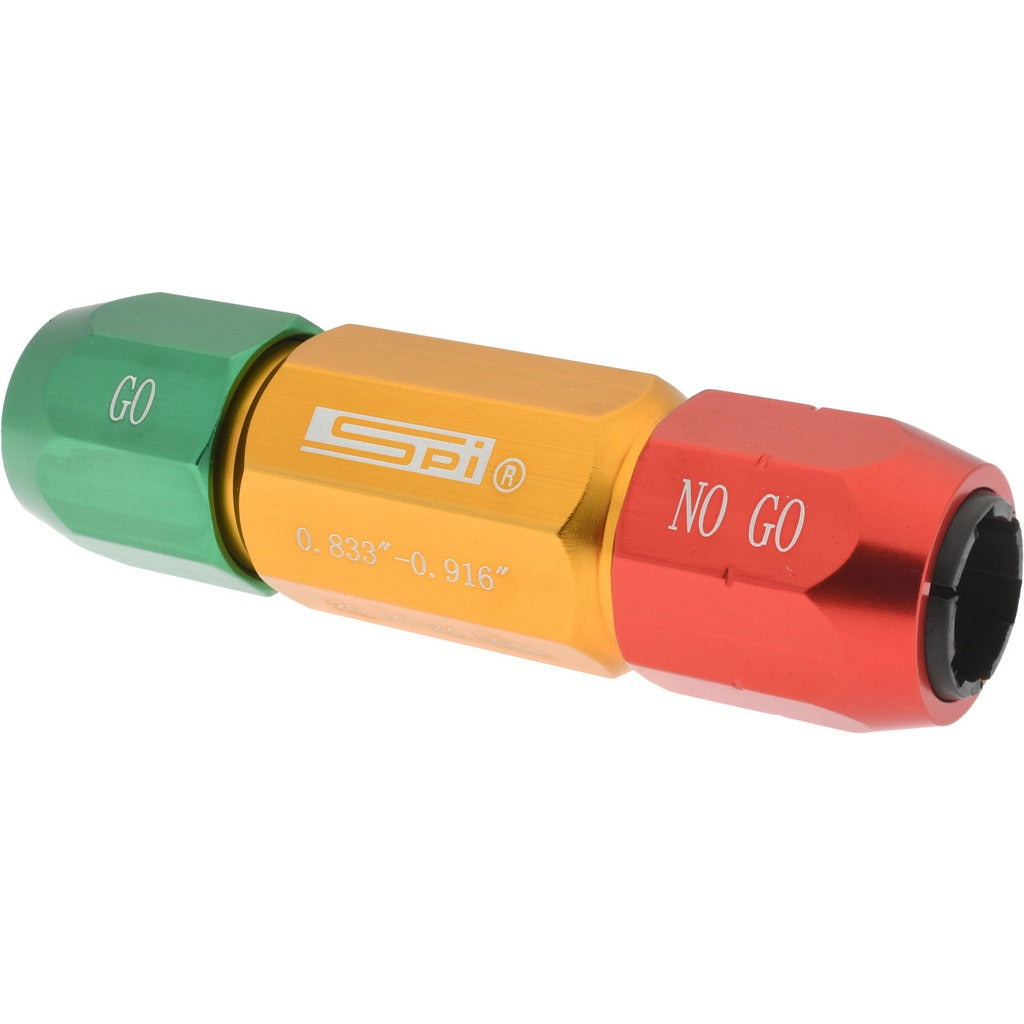

Spi 13-317-3 Pin Gage Handle M0 Aluminum 0.833-0.916 in

Product Description

The SPI 13-317-3 is an aluminum pin gage handle designed to accept pin gages with a ring diameter ranging from 0.833 to 0.916 inches. Sized to the M0 handle designation, this handle provides a secure, ergonomic grip for precision measurement tasks. The lightweight aluminum construction keeps operator fatigue low during repetitive inspection work. Machinists, quality control technicians, and toolroom personnel use this handle to hold individual pin gages when checking hole sizes, bore tolerances, and feature locations on machined parts.

This pin gage handle is suited for use in manufacturing inspection, machine shop environments, and quality labs where go/no-go or attribute gaging is performed. It is used with individual pin gages that fall within the supported ring diameter range, making it a standard tool in any precision metrology setup. The M0 size designation makes it compatible with the pin gage wire sizes that correspond to that handle class.

Key Features

• M0 handle size accommodates pin gages with ring diameters from 0.833 to 0.916 inches
• Aluminum construction provides lightweight durability for daily inspection use
• Compact form factor at 6.19 inches length for controlled, precise handling
• Single-piece handle design for straightforward pin gage insertion and removal
• Individual packaging with a minimum order quantity of 1

Compatibility

Designed for use with pin gages having a ring diameter between 0.833 and 0.916 inches, conforming to the M0 handle size classification standard.

Installation Notes

Pin gage handles are installed by quality control and toolroom personnel without the need for special tools. Insert the pin gage wire into the handle collet end and tighten according to the gage manufacturer's guidance. Inspect the collet and handle bore for debris before seating a gage to avoid measurement error. Store pin gages and handles in a clean, dry location away from cutting fluids and abrasives to preserve accuracy.
