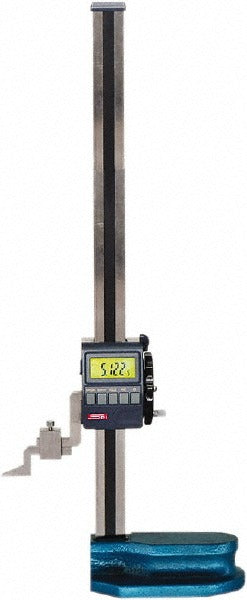

Spi 11-961-0 Electronic Height Gage 600mm 0.0005in

Product Description

The SPI 11-961-0 is an electronic height gage designed for precision dimensional measurement on a surface plate or granite flat. It measures to a maximum of 600 mm and delivers a resolution of 0.0005 inches with an accuracy of 0.002 inches, making it suitable for close-tolerance inspection work in tool rooms, machine shops, and quality control environments. The large LCD display provides clear readout in either inch or metric units. A smooth slider feed wheel allows controlled vertical movement of the measuring arm. This instrument is used by machinists, metrologists, and quality technicians performing layout and inspection tasks.

The SPI 11-961-0 is suited for use in industrial and manufacturing environments where reliable height measurement and scribe line layout are required. The inch/metric conversion function makes it adaptable to dual-unit shops. USB data output allows direct transfer of measurement data to a PC or SPC software, supporting documentation and statistical process control workflows. The unit ships with a battery and a fitted carrying case for protected storage and transport.

Key Features

• 600 mm maximum measurement range with 0.0005 inch resolution
• Accuracy rated at 0.002 inches
• Large LCD display with inch/metric conversion
• USB data output for PC and SPC software integration
• Smooth slider feed wheel for precise vertical positioning
• Manual on/off switch with zero-setting function
• Includes fitted case and CR2032 battery

Compatibility

Designed as a standalone electronic height gage for use on any standard surface plate or granite flat in tool room, inspection, or shop floor applications.

Installation Notes

Electronic height gages require a clean, flat reference surface such as a calibrated surface plate for accurate readings. Before use, inspect the measuring stylus and base contact surfaces for burrs or debris that could affect zeroing. Power down and store in the fitted case when not in use to protect the LCD and sliding mechanism. Battery replacement uses a standard CR2032 coin cell; handle the unit carefully during battery service to avoid contaminating the measuring surfaces.
