Spi 10-703-7 Hole Micrometer 0.2250-0.2750 Inch Range

Product Description

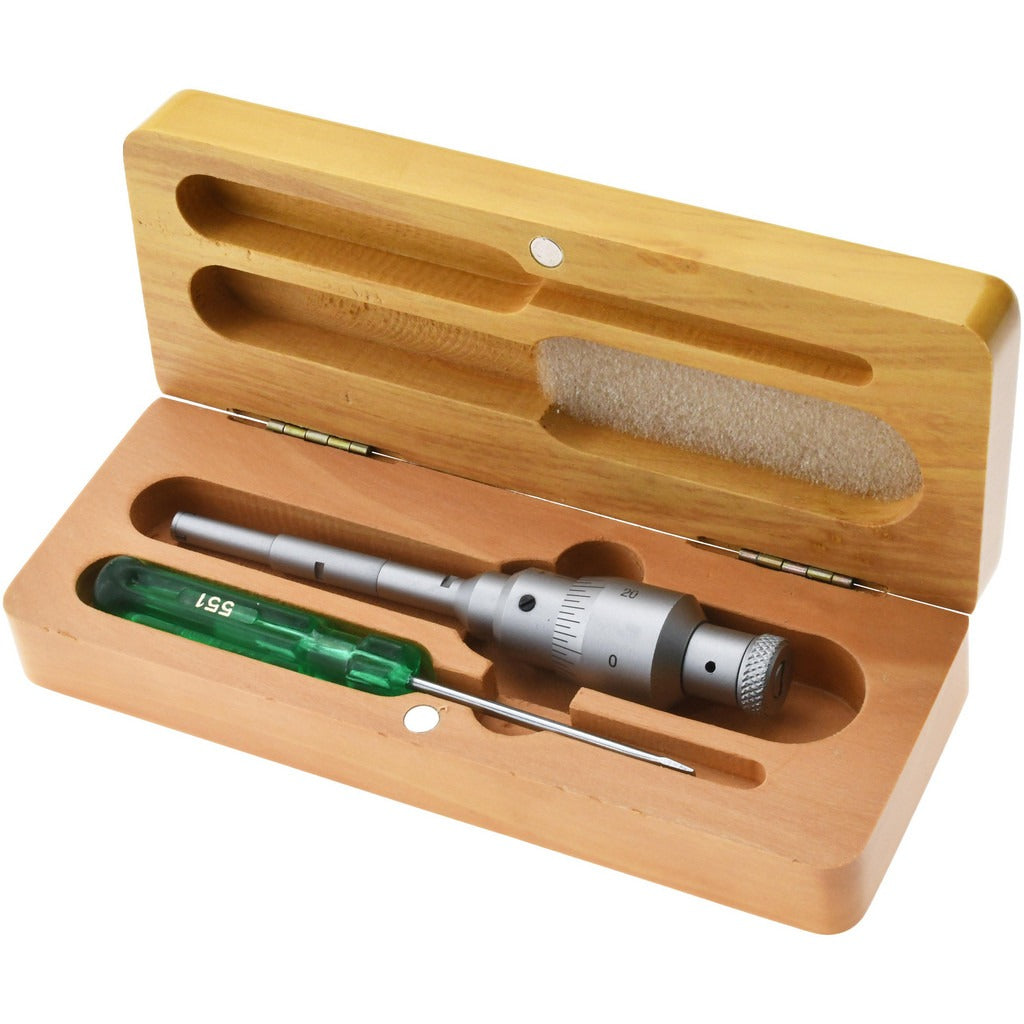

The SPI 10-703-7 is a mechanical inside micrometer designed to measure small-diameter bores and holes with high repeatability. It covers a measurement range of 0.2250 to 0.2750 inches, with a graduation of 0.0001 inches and an accuracy of 0.0002 inches. Three-point solid carbide contact anvils are self-aligning and self-centering, which reduces operator error and produces consistent readings across multiple measurements. A ratchet stop thimble controls measuring force, preventing over-tightening and protecting the workpiece surface. This instrument is suited for quality control, precision machining, and inspection work performed by machinists, toolmakers, and metrology technicians.

The 10-703-7 is used in precision manufacturing and inspection environments where small-bore dimensional verification is required. Typical applications include checking drilled, reamed, or bored holes in metal components during production or incoming inspection. The 0.7800-inch gage depth and 0.2750-inch setting ring diameter define the reach and calibration reference for this tool. It is appropriate for both shop-floor and lab use where tolerances are tight and manual measurement is specified.

Key Features

• Measurement range: 0.2250 to 0.2750 inches for small-bore applications
• Graduation of 0.0001 inches supports high-resolution dimensional checks
• Accuracy of 0.0002 inches for reliable, repeatable results
• Solid carbide measuring anvils resist wear on hardened and abrasive workpieces
• Self-aligning and self-centering three-point contact for consistent bore registration
• Ratchet stop thimble controls applied force and prevents measurement error from over-tightening

Compatibility

Designed as a standalone mechanical hole micrometer for precision bore measurement in the 0.2250 to 0.2750 inch range. No extension rods or setting rings are included with this unit.
