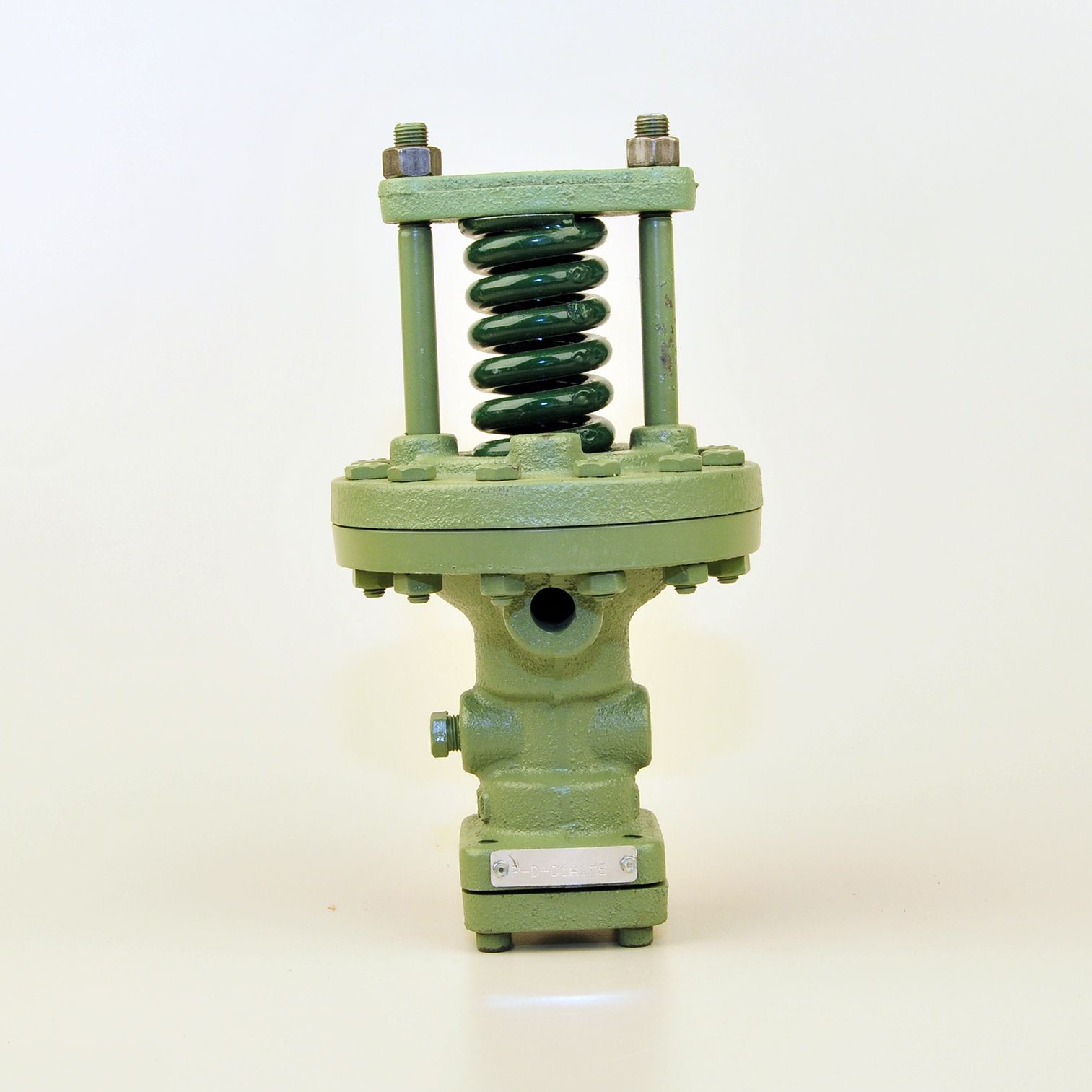

Spence P-D-C1A1MS Spence D - Cast Iron Flgd Pressure Pilot for 100 psi WSP

Product Description

The Spence D pressure pilot P-D-C1A1MS is designed for steam applications and operates within a pressure range of 10-100 pounds. This pressure pilot is used with E Series main valves and regulates steam flow by sensing pressure through a control spring mechanism. Key adjustments can be made via an adjustment nut located on the top of the unit. The device features a downstream sensing line that helps manage pressure on the main valve diaphragm, ensuring efficient operation.

• Operates between 10-100 psi pressure range
• Constructed from durable cast iron
• Flanged valve connection for easy installation

Product Highlights

This product is ideal for managing steam pressure in various systems, ensuring optimal performance and reliability in steam applications.

Product Information

Standard Information

• Brand: Spence
• Model: D10100

Technical Specifications

• MPN: P-D-C1A1MS
• Valve Application: Steam
• Body Material: Cast Iron
• Piping Configuration: Straight
• Valve Connection: Flanged
• Max Pressure: 100 psi WSP
• Replaces: 700122
• Weight: 8.27 lbs
