Product Description

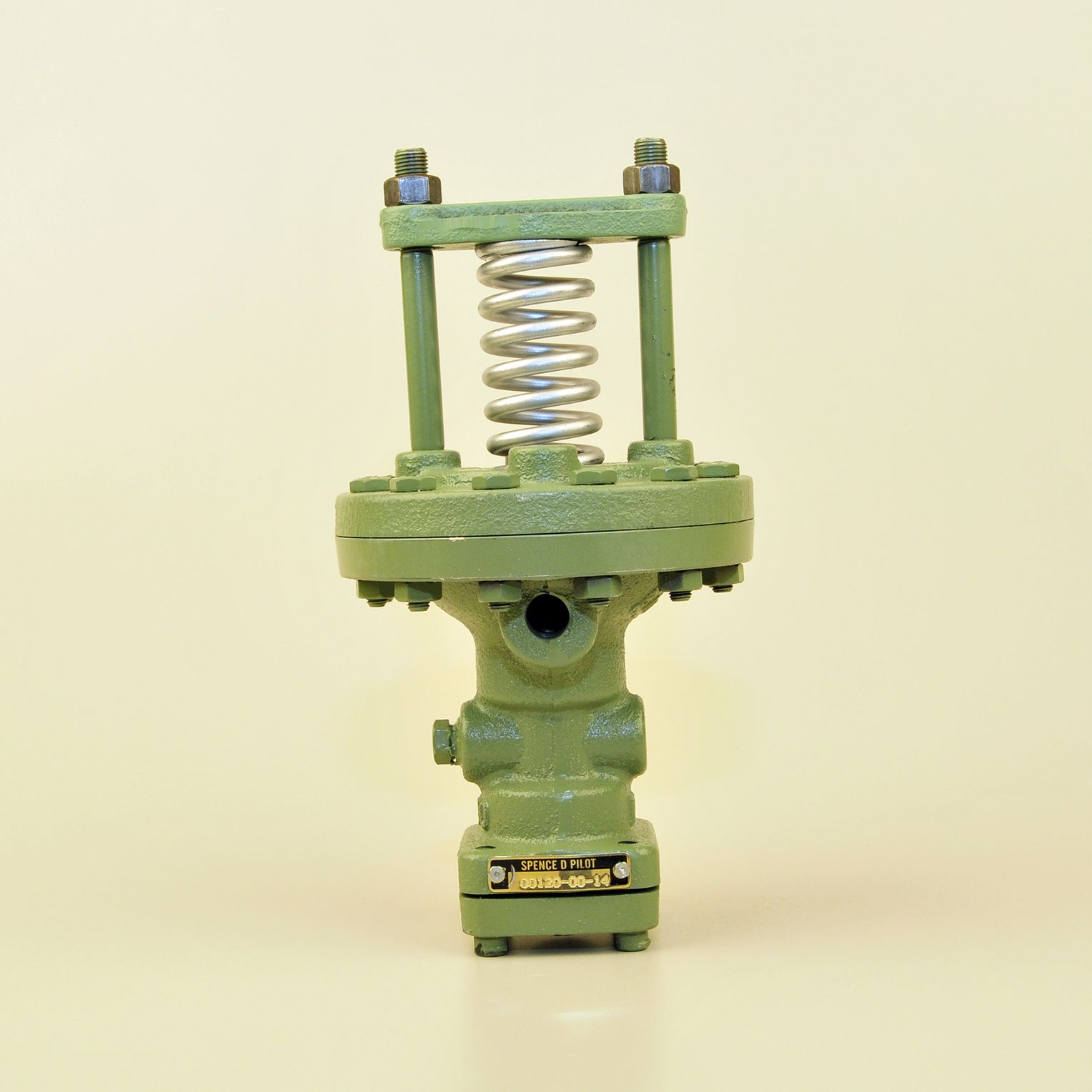

The Spence D320 Pressure Pilot, model P-D-C1A1HS, operates within a pressure range of three to twenty psi. This pilot valve is designed for use alongside E Series main valves, providing precise pressure regulation for steam applications. The pressure pilot controls the main valve by detecting steam flow and adjusting the pressure spring. An adjustment nut allows for easy pressure range modifications. The pilot features a downstream sensing line that improves responsiveness, ensuring the main valve diaphragm operates efficiently to manage steam flow effectively.
- Compatible with E Series main valves.
- Adjustable pressure range from three to twenty psi.
- Constructed from durable cast iron.
Product Highlights
This product is key for steam systems, providing reliable pressure management and maintaining system efficiency.
Product Information
Standard Information
-
Brand: Spence
-
Model: D320
Technical Specifications
-
MPN: P-D-C1A1HS
-
Valve Application: Steam
-
Body Material: Cast Iron
-
Piping Configuration: Straight
-
Valve Connection: Flanged
-
Max Pressure: 20 psi WSP
-
Weight: 7.78
