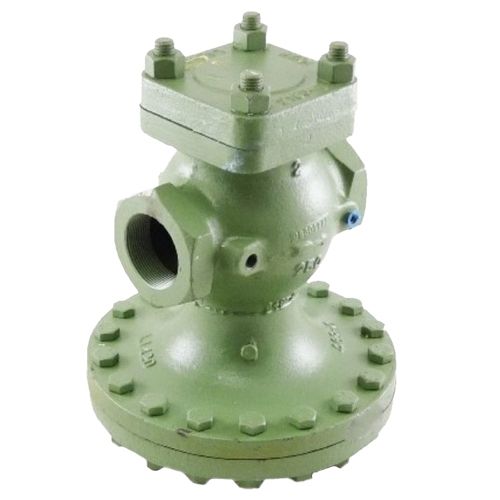

Spence E-C1H9A1 E-2 E-Main Regulator Valve Cast Iron 2 NPT 250 psi

Product Description

The Spence E-C1H9A1 is a main regulator valve designed for industrial applications. It features a two-inch NPT connection and is made from cast iron. The valve operates normally closed and has a single seat design. It incorporates balanced metal diaphragms and a protected main spring. This valve performs optimally when used with various types of Spence Pilots, satisfying a range of regulatory functions.

• Type E Main Valve constructed from durable cast iron
• Operates at a maximum pressure of 250 psi
• Designed for steam applications with a straight piping configuration

Product Highlights

This valve is essential for maintaining consistent pressure in steam systems. Its robust design ensures long service life and reliability in demanding environments.

Product Information

Standard Information

• Brand: Spence
• MPN: E-C1H9A1
• Model: E-2

Technical Specifications

• Valve Size: 2 inches
• Valve Connection: NPT
• Piping Configuration: Straight
• Body Material: Cast Iron
• Valve Application: Steam
• Max Pressure: 250 psi
• Weight: 63.50 lbs
