Spence D5-5/25 Cast Iron Flgd Pressure Pilot for 25 psi WSP

Product Description

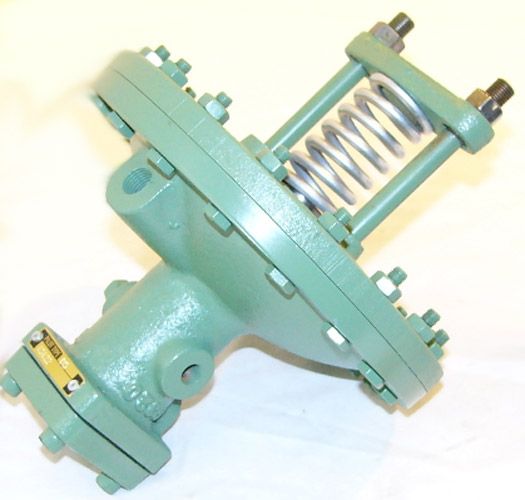

The Spence D5 pressure pilot, MPN D5-5/25, is designed for a pressure range of five to twenty-five psi. It operates in conjunction with E Series main valves. The pressure pilot functions by sensing steam flow, allowing it to open and close the main valve. The pressure spring inside the pilot controls this action. The pressure setting can be adjusted using an adjustment nut located on the top.

• Operates within a pressure range of 5-25 psi
• Compatible with E Series main valves
• Cast iron construction for durability

Product Highlights

This pressure pilot is essential for maintaining proper steam pressure in heating systems.

Product Information

Standard Information

• Brand: Spence
• Model: P-D5-C1A1JS

Technical Specifications

• Valve Application: Steam
• Body Material: Cast Iron
• Piping Configuration: Straight
• Valve Connection: Flanged
• Max Pressure: 25 psi WSP
• Weight: 14.00 lbs
• Alias: D5525
