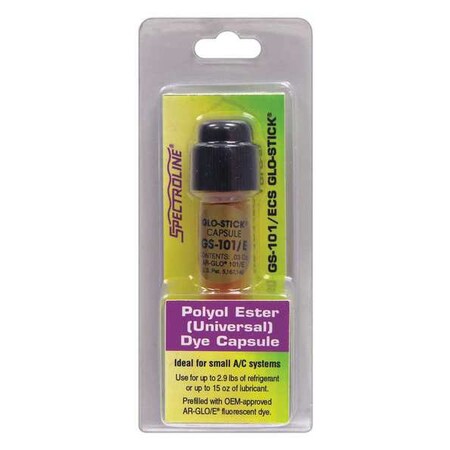

Spectroline gs-101/ecs Universal Poe Dye Leak Detector

Product Description

The SPECTROLINE gs-101/ecs is a dye capsule leak detector designed for use in refrigeration and air conditioning systems. The capsule introduces fluorescent dye into the system oil to help technicians locate refrigerant leaks using a UV or fluorescent leak detection lamp. Each capsule holds 0.03 oz of dye and is suited for systems containing up to 15 fl oz of oil and up to 2.9 lbs of refrigerant. The plastic capsule format allows for straightforward injection without removing oil from the system. Licensed HVAC technicians working on small residential cooling equipment are the primary installers.

This dye capsule is rated for AC and refrigeration systems up to 1 ton in capacity. It is compatible with compressor oils including alkyl benzene, mineral oil, and POE, making it suitable for a broad range of refrigerant systems where these oil types are in use. The universal and POE dye formulation reduces the need to stock multiple dye types for different system configurations commonly found in residential and light commercial service work.

Key Features

• Universal and POE compatible dye formulation works with alkyl benzene, mineral oil, and POE compressor oils
• 0.03 oz plastic capsule delivers a measured dye charge for small systems
• Rated for refrigerant charges up to 2.9 lbs and oil charges up to 15 fl oz
• Designed for AC and refrigeration systems up to 1 ton
• Capsule format allows clean, controlled dye injection into the system

Compatibility

Designed for use in residential air conditioning and refrigeration systems up to 1 ton that use alkyl benzene, mineral oil, or POE compressor oil.

Installation Notes

Installation is performed by a licensed HVAC technician following standard refrigerant system service procedures. Recover refrigerant and relieve system pressure before accessing the low-side service port for dye injection where required by the injection method. After injection, operate the system to circulate the dye, then inspect with a compatible UV or fluorescent leak detection lamp. Follow all applicable EPA Section 608 regulations when handling refrigerants during the service procedure.

Technical Specifications

• Capsule Size: 0.03 oz
• Capsule Type: Plastic
• Dye Type: Universal / POE
• Compatible Compressor Oils: Alkyl benzene, mineral oil, POE
• Maximum Oil Charge: Up to 15 fl oz
• Maximum Refrigerant Charge: Up to 2.9 lbs
• Typical Application: AC and refrigeration systems up to 1 ton
• Warranty: 30 days

Standard Information

• Brand: SPECTROLINE
• Manufacturer Part Number: gs-101/ecs
