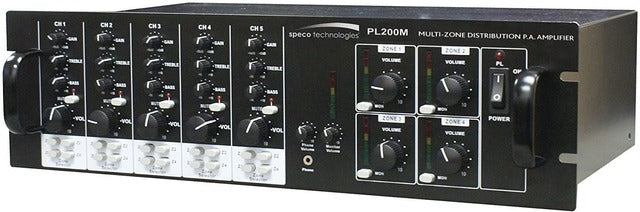

Speco pl200m 160W 4 Zone Commercial Amplifier Mixer

Product Description

The SPECO pl200m is a 160-watt commercial amplifier and mixer designed for multi-zone audio distribution in commercial and institutional settings. The unit combines amplification and mixing in a single rack-mountable chassis, making it a practical solution for contractors and AV integrators who need zoned audio without a separate signal processor. It accepts up to five input sources and routes them independently to four output zones using onboard matrix technology. Each zone has its own dedicated volume control, and each channel offers individual gain, treble, bass, and volume adjustments for precise system tuning.

The pl200m is suited for offices, hotels, restaurants, retail spaces, schools, and houses of worship where simultaneous playback of different audio sources to different areas is required. Channels 1 through 3 use combo XLR and 1/4-inch inputs that are switchable between mic and line level. Channels 5 and 6 accept line-level signals via RCA connectors. This input flexibility accommodates microphones, media players, telephone paging interfaces, and auxiliary program sources on the same system.

Key Features

• 160 watts total output power across four independent zones
• Matrix routing sends any of five inputs to any of four zones simultaneously
• Channels 1-3 feature combo XLR and 1/4-inch inputs switchable between mic and line level
• Channels 5 and 6 accept line-level RCA input connections
• Per-channel controls for gain, treble, bass, and volume
• Dedicated zone output volume controls for each of the four zones

Compatibility

Designed as an OEM-style commercial mixer amplifier for fixed-installation audio distribution systems in multi-zone commercial environments.

Installation Notes

Installation is typically performed by licensed AV contractors or low-voltage technicians. Power down the unit before making any speaker or input wiring connections. Observe local low-voltage wiring codes and verify speaker load impedance matches the amplifier output specifications before energizing. Do not exceed the rated input or output connections for each channel.

Technical Specifications

• Output Power: 160 watts
• Number of Zones: 4
• Number of Inputs: 5
• Input Types: Combo XLR and 1/4-inch (mic/line switchable, channels 1-3), RCA line level (channels 5 and 6)

Standard Information

• Brand: SPECO
• Manufacturer Part Number: pl200m
