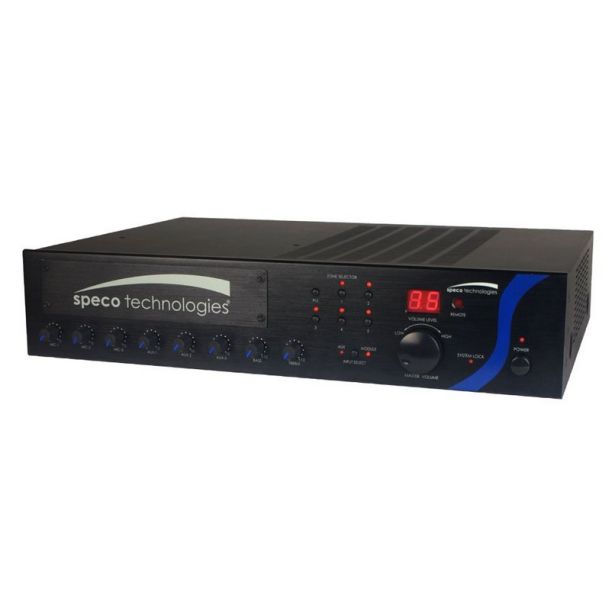

Speco PBM60A PA Mixer Amplifier with Module Bay 60W

Product Description

The SPECO PBM60A is a versatile 60W RMS amplifier designed for professional environments. It features 5 zoned speaker outputs with 70 or 25V options and non-zoned outputs compatible with 4, 8, or 16 Ohm speakers. The amplifier includes a master digital volume control with display, individual volume adjustments, and front bass and treble controls. It also has phantom power on all mic inputs and a digital front panel lock.

• Includes IR remote and rack-mounting kit
• 5 zoned 70 or 25V speaker outputs
• Non-zoned 4/8/16 Ohms output

Product Highlights

Ideal for commercial public address applications, the PBM60A offers superior sound control and flexibility with ample inputs and integration capabilities.

Product Information

Standard Information

• Brand: SPECO
• Manufacturer Part Number: PBM60A
• Country of Origin: Germany

Technical Specifications

• Brand Name: Speco Technologies
• Manufacturer: Speco Technologies
• Manufacturer Part Number: PBM60A
• Product Model: PBM60A
• Product Type: Amplifier
• Audio Channels: 5
• Impedance: 16 ohms
• Maximum Frequency Response: 20 kHz
• Minimum Frequency Response: 50Hz
• RMS Output Power: 60W
• Operating Power Consumption: 100W
• Number of Audio Inputs: 8
• Input Voltage: 115V AC
• Environmental Certification: RoHS
• Environmentally Friendly: Yes
• NDAA Compliance: Yes
• Watts: 60 Watts
• Number of Mixer Inputs: 5
• Number of Amplifier Channels: 1
• Load Impedance/Voltage Support: 4 / 8 / 16 Ohms 25 / 70 V
• Power Rating per Channel: 1x 60 W
• Frequency Response: 50 Hz to 20 kHz
• SNR/Noise: > 88 dB SNR
• THD/Distortion: ≤ 1% THD (1 kHz)
• DSP: No
• EQ & Filters: 2-Band EQ
• Analog Audio I/O: 1x Stereo 2RCA Unbalanced Line/Aux Output 1x XLR 3-Pin Line/Aux Output 3x Stereo 2RCA Unbalanced Aux Input 3x XLR 3-Pin Balanced Mic Input 1x Barrier Strip Telephone/PBX Input
• Digital Audio I/O: No
• Network I/O: No
• Other I/O: 1x Push Terminal AM Antenna Input 1x BNC FM Antenna Input 1x DB-9 RS-232 Input
• USB I/O: No
• Phantom Power: Yes: Voltage Unspecified
• Wireless: No
• AC Power Connector: 1x IEC
• Power Consumption: 100 W (Typical) 120 W (Max)
• Display: Alphanumeric LED
• Rackmount Size: 2 U (with Included Hardware)
• Certifications: CE , FCC , RoHS
